Léopard 2003

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

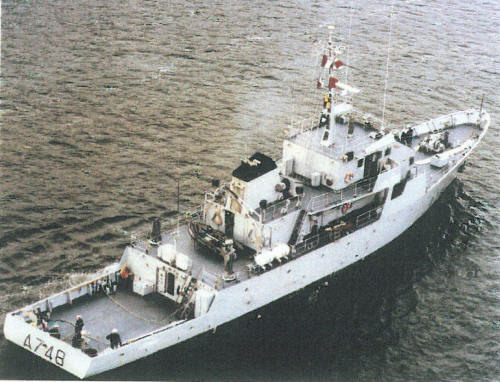

Léopard	A748		SICNAV, St-Malo	6.4.1981	4.6.1981	4.12.1982	in service (2019)
Panthère	A749		SICNAV, St-Malo	9.6.1981	3.9.1981	4.12.1982	in service (2019)
Jaguar	A750		SICNAV, St-Malo	27.9.1981	29.10.1981	18.12.1982	in service (2019)
Lynx	A751		Le Perriere, Lorient	23.7.1981	27.2.1982	18.12.1982	in service (2019)
Guépard	A752		SICNAV, St-Malo	11.10.1982	1.12.1982	1.7.1983	in service (2019)
Chacal	A753		SFCN, Villeneuve-la-Garenne	11.10.1982	11.2.1983	10.9.1983	in service (2019)
Tigre	A754		Le Perriere, Lorient	16.4.1982	8.10.1982	1.7.1983	in service (2019)
Lion	A755		Le Perriere, Lorient	21.2.1982	13.12.1982	10.9.1983	in service (2019)

Technical data

Displacement standard, t	335
Displacement full, t	460
Length, m	40.2 pp 43.0 oa
Breadth, m	8.30
Draught, m	3.21
No of shafts	2
Machinery	2 SACM 75 V16 ASHR diesels
Power, h. p.	2200
Max speed, kts	15
Fuel, t	diesel oil
Endurance, nm(kts)	4100(12)
Armament	2 x 1 - 20/70 Mk 10 Mod. 23
Electronic equipment	DRBN-32 radar
Complement	14 + 4 instructors + 18 trainees

Standard scale images

Graphics

Project history

Navigational training craft, also for use as antipollution patrol vessels.

Modernizations

2002, all: - 2 x 1 - 20/70; + 2 x 1 - 12.7/90

2011-2012, all: re-engined with 2 Badouin 12M26-2 diesels (335/470t, 2200hp, 15kts)

Naval service

No significant events.
