FIGHTING SHIPS OF THE WORLD
FRANCE
COASTAL FORCES
JONQUILLE motor launches (1996 - 1997)





Jonquille 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Jonquille P721   Guy Couach-Plascoa, Bordeaux 21.11.1995 4.7.1996 19.11.1996 in service (2019)
Jasmin P723   Guy Couach-Plascoa, Bordeaux 1996 13.1.1997 10.1997 in service (2019)


Technical data


Displacement standard, t

82

Displacement full, t98
Length, m29.0 wl 32.0 oa
Breadth, m6.50
Draught, m1.10
No of shafts2 outboard propellers + 1 waterjet
Machinery2 MWM-Deutz TRD 616 V16 diesels + 1 MWM-Deutz TRD 616 V12 diesel
Power, h. p.2882 + 1082 = 3964
Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)1200(15)
Armament1 x 1 - 12.7/90, 1 x 1 - 7.6/90
Electronic equipmentBridgemaster II CH180/6 radar
Complement14


Graphics

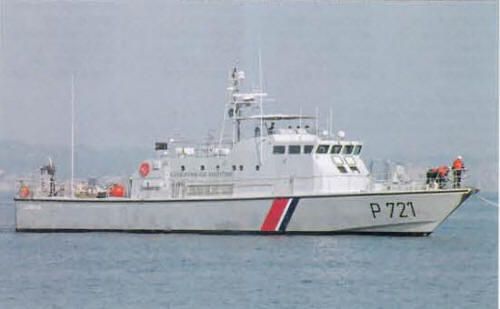

<i>Jonquille </i>2008
Jonquille 2008


Project history

Plascoa-32 design. GRP hulls and GRP sandwich superstructures.

Modernizations

None.

Naval service

No significant events.
