REDOUTABLE central battery ship (1878)





Redoutable

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Redoutable     Arsenal de Lorient 18/7/1873 18/9/1876 31/12/1878 stricken 3/1910


Technical data


Displacement normal, t

9224

Displacement full, t
Length, m

97.1 wl 100.7 oa

Breadth, m

19.7

Draught, m

7.80 max

No of shafts

1

Machinery

1 HRCR compound, 8 oval boilers

Power, h. p.

6200

Max speed, kts

14.7

Fuel, t

coal 620

Endurance, nm(kts)2840(10)
Armour, mmwrought iron; belt: 350 - 220, battery: 300 - 240, deck: 60 - 45
Armament

8 x 1 - 274/20 M1875, 6 x 1 - 139/21 M1870, 12 x 5 - 37/20 M1885, 2 - 350 TT (aw, beam)

Complement

705



Standard scale images

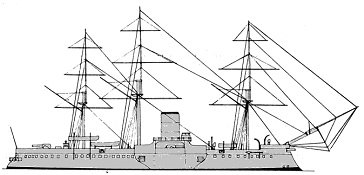

<i>Redoutable</i> 1878
Redoutable 1878


Graphics


<i>Redoutable</i> as built

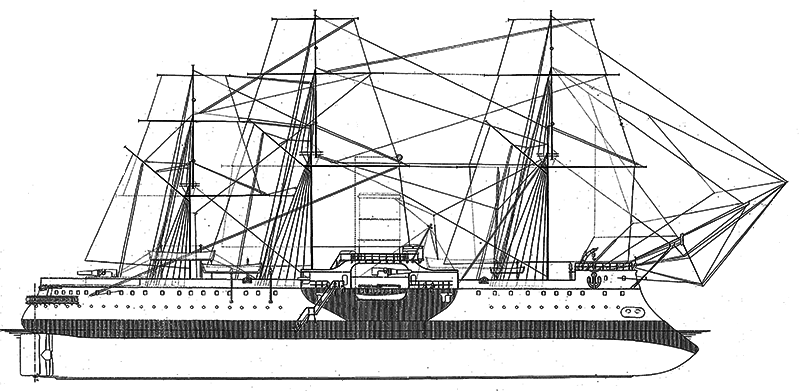

Redoutable as built
<i>Redoutable</i>

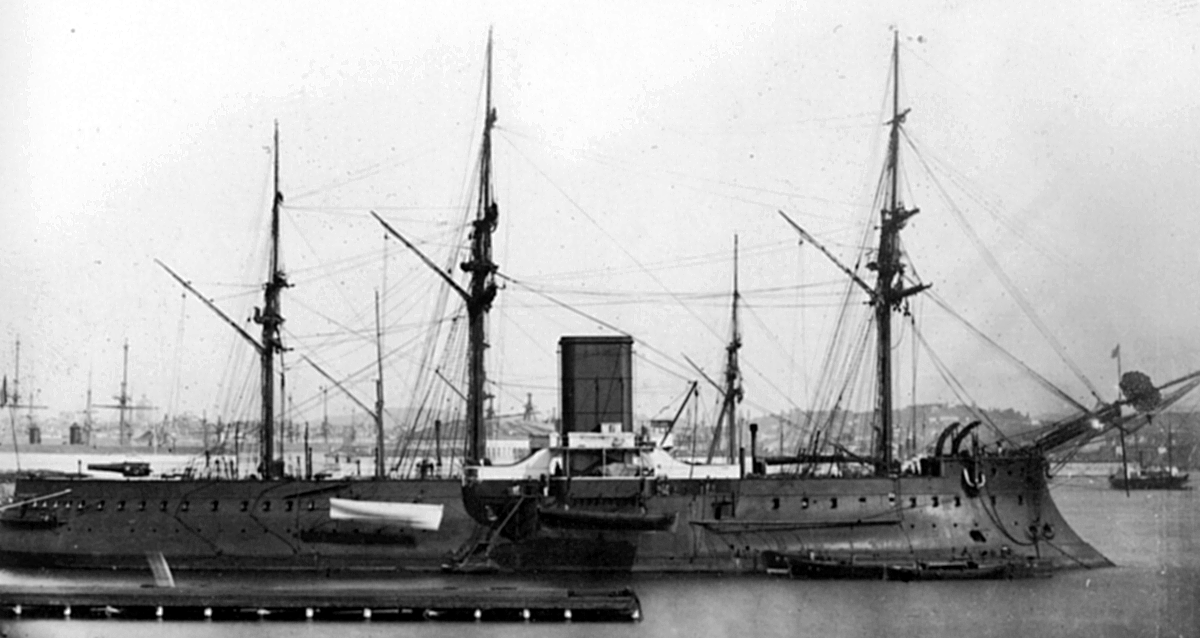

Redoutable
<i>Redoutable </i>after refit

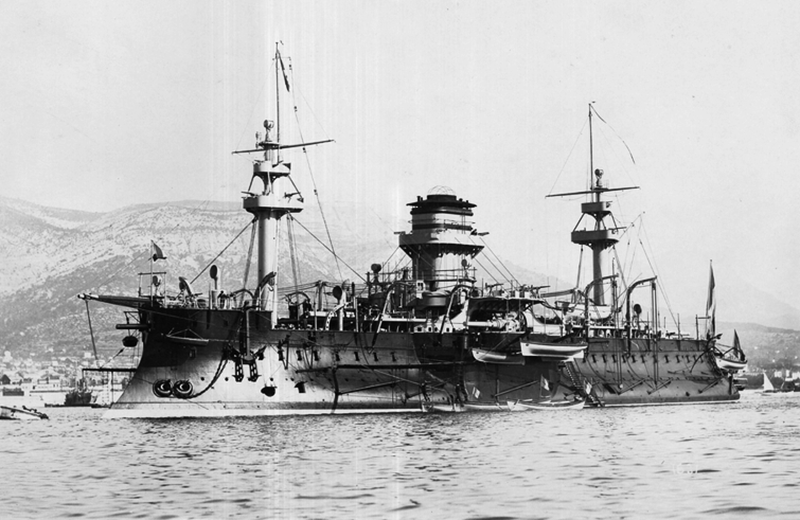

Redoutable after refit


Ship project history


This ship was of quite different design to previous central battery ships. Beam was increased, draught reduced and the central battery shortened with only four guns mounted at the corners. With very marked tumblehome and the battery taken out to the full beam of the hull, all-round fire was obtained at the price of very limited broadside arcs, so that in most directions only one of the battery guns would bear. For the first time steel was used in large amounts for the hull though the armour was still wrought iron. There was a double bottom but there were no watertight longitudinal bulkheads, and the steam steering engine was above water. The four battery guns were of a lighter, lower velocity pattern than the four unarmoured upper deck ones, which were mounted under the forecastle, at the stern and on either beam in half-barbettes. The 139mm, later replaced by 100mm, were on the upper deck. Magazines for the battery guns were liable to be overheated by the machinery spaces. Metacentric height is given as 0.85m and originally she was full rigged with 2230 m2 , but later rigged as a barquentine. Ultimately the Redoutuble had two military masts which, with the large funnel, gave her an imposing appearance.

Ship protection


The belt was complete and ran from 1.5m below to 1.5m above wl. lt was 350mm amidships thinning to 220mm forward and to 230mm aft and at the lower edge. The battery armour upper edge was 5.8m above wl, and there was a 60mm deck at the belt upper edge outside the battery but no armoured roof to the latter.

Modernizations


1880s: - 5 x 1 - 274/20 (bow and battery); + 1 x 1 - 274/29 M1881, 4 x 1 - 274/18 M1870

late 1880s: - 4 x 1 - 274/18; + 4 x 1 - 240/29 M1881

1894: machinery was replaced by 8 cylindrical boilers and 1 VTE; - 3 x 1 - 274/20, 4 x 1 - 240/29, 6 x 1 - 139/21; + 3 x 1 - 274/40 M1893-96, 4 x 1 - 240/30 M1884, 6 x 1 - 100/45 M1891

1890s: - 7 x 5 - 37/20; + 5 x 1 - 65/50 M1891, 14 x 1 - 47/40 M1885, 5 x 1 - 37/20 M1885

Naval service


No significant events.
