KEIHÄSSALMI minelayer (1958)

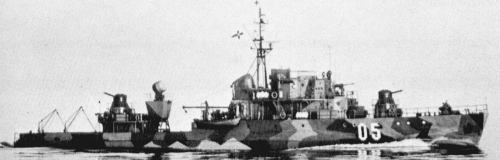

Keihässalmi 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Keihässalmi 05   Valmet, Helsinki 1956 16/3/1957 1958 stricken 1992


Technical data


Displacement standard, t

290

Displacement full, t360
Length, m

56.0

Breadth, m

7.70

Draught, m

2.00

No of shafts

2

Machinery

2 Wärtsilä diesels

Power, h. p.

1600

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/70 Bofors 315, 2 x 1 - 20/70 Mk 7, 100 mines

Electronic equipmentDecca nav. radar
Complement

60



Standard scale images


<i>Keihässalmi </i>1960
Keihässalmi 1960
<i>Keihässalmi </i>1980
Keihässalmi 1980


Graphics


<i>Keihässalmi </i>1979
Keihässalmi 1979


Ship project history


Improved Ruotsinsalmi.

Modernizations


1972: - 2 x 1 - 40/70; + 2 x 2 - 30/71 AK-230, Rys' radar

Naval service


No significant events.
