HÄMEENMAA minelayers (1992)

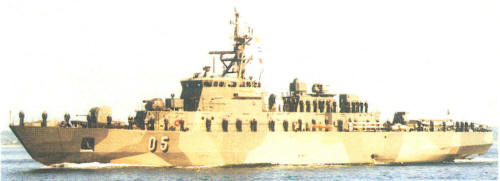

Uusimaa 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hämeenmaa 02   Finnyards, Rauma 2.4.1991 11.11.1991 15.4.1992 in service (2019)
Uusimaa 05   Finnyards, Rauma 12.11.1991 6.1992 2.12.1992 in service (2019)


Technical data


Displacement standard, t1000
Displacement full, t1330
Length, m

69.6 pp 77.0 oa

Breadth, m

11.6

Draught, m

3.00

No of shafts

2

Machinery

2 Wärtsilä-Vasa 16V22MD diesels

Power, h. p.

7070

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 40/70 Bofors 315, 1 x 6 Sako SAM (6 Mistral), 2 x 2 - 23/87 Sako, 2 x 5 RBU-1200 ASWRL, 2 DCR (12), 100-150 mines

Electronic equipment3x Selesmar radars, SS304 sonar, Matilda ECM suite, 2x Super Barricade decoy RL
Complement

45



Standard scale images


<i>Hämeenmaa </i>2000
Hämeenmaa 2000
<i>Hämeenmaa </i>2010
Hämeenmaa 2010


Graphics


<i>Uusimaa </i>2001
Uusimaa 2001
<i>Uusimaa </i>2014
Uusimaa 2014


Project history

Built with bow and stern ramps and were able to serve as logistic transports.

Modernizations

2007, both: - 2 x 1 - 40/70, 1 x 6 Sako SAM, 2 x 2 - 23/87, 1x Selesmar radar, SS304 sonar, 2x Super Barricade decoy RL; + 1 x 8 Umkhonto SAM (VLS, 8 Umkhonto), 1 x 1 - 57/70 Bofors SAK-57 Mk 1, 2 x 1 - 12.7/79, helicopter deck, TRS-3D 16, CEROS 200 radars, SS249 sonar, EOMS, 2x OGR e/o systems, 2x MASS decoy RL, ANCS 2000 CCS

Naval service

No significant events.
