VIIMA large patrol craft (1964)
Viima 1971
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Viima | Laivateollisuus, Turku | 20.7.1964 | 12.10.1964 | to Estonia 1995 (Maru) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 135 |
| Length, m | 36.0 |
| Breadth, m | 6.60 |
| Draught, m | 2.30 |
| No of shafts | 3 |
| Machinery | 3 Mercedes-Benz diesels |
| Power, h. p. | 4050 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 7 |
| Electronic equipment | radar |
| Complement | 13 |
Standard scale images

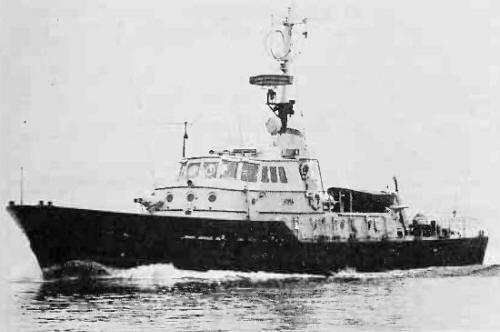

Viima 1964
Graphics
Viima 1971
Project history
Large patrol craft.
Modernizations
None.
Naval service
No significant events.
