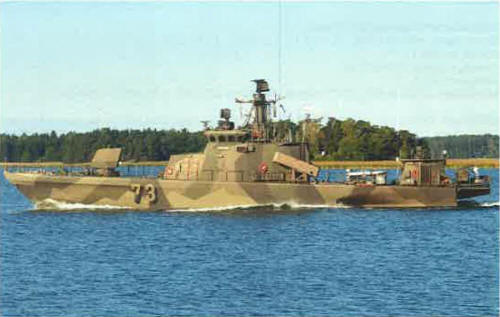

Naantali 2014

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Rauma	70		Hollming, Rauma		1989	18.10.1990	in service (2019)
Raahe	71		Hollming, Rauma		1990	20.8.1991	in service (2019)
Porvoo	72		Hollming, Rauma		1991	27.4.1992	in service (2019)
Naantali	73		Hollming, Rauma		1992	23.6.1992	in service (2019)

Technical data

Displacement standard, t	215
Displacement full, t	250
Length, m	41.0 pp 48.0 oa
Breadth, m	8.00
Draught, m	3.20
No of shafts	2 waterjets
Machinery	2 MTU 16V538 TB92 diesels
Power, h. p.	8000
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	(2 x 2 + 2 x 1) RBS-15SF SSM (6 RBS-15SF), 1 x 6 Sako SAM (6 Mistral), 1 x 1 - 40/70 Bofors 350, 2 x 1 - 12.7/79, 4 x 9 Elma LLS.920 ASWRL, mines
Electronic equipment	Raytheon, 9GA208, 9LV225 radars, 9LV200 Mk 3 e/o system, SS304, SONAC-PTA (provision for) sonars, Matilda-E ECM suite, Philax decoy RL, COLDS laser countermeasure, 9LV200 Mk 3 CCS
Complement	19

Standard scale images

Graphics

Project history

Shorter, shallower-draft successor to Helsinki class, ordered  21.8.1987. Sako barbette can be used as for sextuple Mistral launcher as for twin 23mm AA gun.

Modernizations

2000s, all: - (2 x 2 + 2 x 1) RBS-15SF SSM; + (2 x 2 + 2 x 1) RBS-15SF3 SSM (6 RBS-15SF3)

2010-2014, all: - 9LV200 Mk 3 e/o system, SONAC-PTA sonar, Matilda-E ECM suite, Philax decoy RL, 9LV200 Mk 3 CCS; + 9LV Mk 4 e/o system, ST-2400 sonar, SIEWS ECM suite, 2x MASS decoy RL, 9LV Mk 4 CCS

Naval service

No significant events.
