HAMINA fast attack craft (missile) (1998-2006)

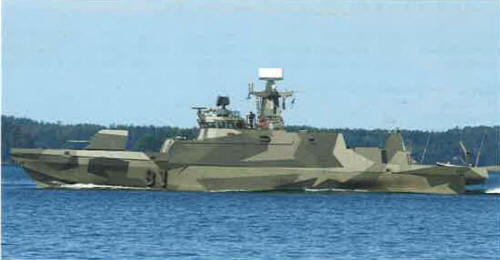

Tornio 2014

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hamina 80   Aker Finnyards, Rauma 8.1997 25.4.1998 24.8.1998 in service (2019)
Tornio 81   Aker Finnyards, Rauma 2001 2002 13.5.2003 in service (2019)
Hanko 82   Aker Finnyards, Rauma 2004 2005 22.6.2005 in service (2019)
Pori 83   Aker Finnyards, Rauma 2005 2005 19.6.2006 in service (2019)


Technical data


Displacement standard, t

235
Displacement full, t

270
Length, m

44.3 pp 50.8 oa
Breadth, m

8.30
Draught, m

1.90
No of shafts

2 waterjets
Machinery

2 MTU 16V538 TB93 diesels
Power, h. p.

7500
Max speed, kts

32
Fuel, t

diesel oil
Endurance, nm(kts)

500(30)
Armament

80, 81: 2 x 2 RBS-15SF3 SSM (4 RBS-15SF3), 1 x 6 Sako SAM (6 Mistral), 1 x 1 - 40/70 Bofors 350, 2 x 1 - 12.7/79, 4 x 9 Elma LLS.920 ASWRL, 1 DCR

82, 83: 2 x 2 RBS-15SF3 SSM (4 RBS-15SF3), 1 x 8 Umkhonto SAM (VLS, 8 Umkhonto), 1 x 1 - 57/70 Bofors SAK-57 Mk 3, 2 x 1 - 12.7/90, 4 x 9 Elma LLS.920 ASWRL, 1 DCR
Electronic equipment

80, 81: 9LV 225, Raytheon ARPA radars, EOS-400 e/o system, Toadfish, SONAC-PTA sonars, Matilda-E ECM suite, 2x Philax decoy RL, TACTICOS CCS

82, 83: TRS-3D, CEROS 200, MM950 radars, EOMS e/o system, Toadfish, SONAC-PTA sonars, SIEWS, MAIGRET ECM suites, 2x MASS decoy RL, ANCS 2000 CCS
Complement

21


Standard scale images


<i>Hamina </i>2010
Hamina 2010


Graphics


<i>Tornio </i>2014
Tornio 2014


Project history

Ordered in 1997-2003. Aluminium hull, superstructure was constructed from composite. Extensive signature reduction measures. SSMs are carried in covered launchers.

Modernizations

2005, Tornio; 2006, Hamina: - 1 x 6 Sako SAM, 1 x 1 - 40/70, 9LV 225, Raytheon ARPA radars, EOS-400 e/o system, Matilda-E ECM suite, 2x Philax decoy RL, TACTICOS CCS; + 1 x 8 Umkhonto SAM (VLS, 8 Umkhonto), 1 x 1 - 57/70 Bofors SAK-57 Mk 3, TRS-3D 16, CEROS 200, MM950 radars, EOMS e/o system, SIEWS, MAIGRET ECM suites, 2x MASS decoy RL, ANCS 2000 CCS

2019-2021, all as planned: - 2 x 2 RBS-15SF3 SSM, 1 x 1 - 57/70, SONAC-PTA sonar, ANCS 2000 CCS; + 2 x 2 Gabriel SSM2020 (Gabriel Mk 5) SSM (4 Gabriel Mk 5), 1 x 1 - 40/70 Bofors Mk 4, 2 x 3 - 400 TT (6 Tp45), ST-2400 sonar, 9LV Mk 4 CCS

Naval service

No significant events.
