GC12 patrol boat (1967/2001)
PM12 2009
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC12 (ex-Point Stuart), 2003- PM12 |
Martinac SB, Tacoma, USA: GC12 |
1967 // 2001: GC12 |
none |
None |
in service (2019): PM12 |
Technical data
| Displacement standard, t | 64 |
|---|---|
| Displacement full, t | 69 |
| Length, m | 25.3 |
| Breadth, m | 5.25 |
| Draught, m | 1.95 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3412V12 diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(8) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 8 |
Standard scale images

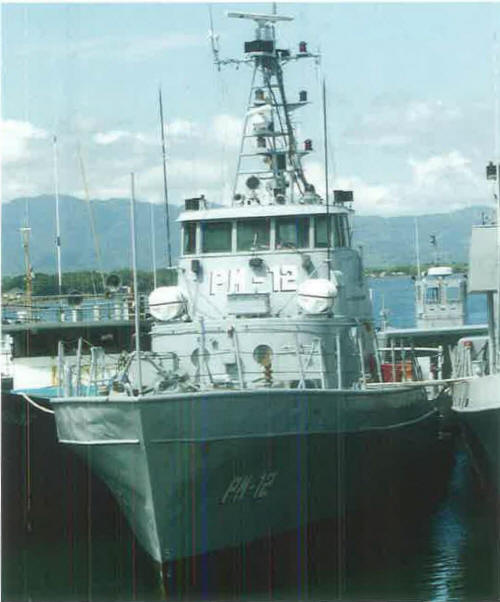

PM12 2005
Graphics
PM12 2009
Project history
Former USCG Point class cutter.
Modernizations
None.
Naval service
No significant events.
