711 submarines (1959/1966-1967)

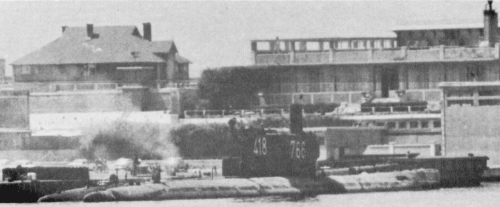

No 766 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-С-32 [S-32]) 711, 1986- 831   Krasnoe Sormovo, Gorkiy, USSR 28.8.1958 30.8.1959 31.12.1959 // 10.1966 stricken 1989
(ex-С-34 [S-34]) 342, 1986- 834   Krasnoe Sormovo, Gorkiy, USSR 18.10.1958 14.6.1959 31.12.1959 // 10.1966 stricken 1989
(ex-С-353 [S-353]) 334, 1986- 837   Krasnoe Sormovo, Gorkiy, USSR 14.5.1958 30.11.1958 26.12.1959 // 7.1966 stricken 1996
(ex-С-354 [S-354]) 335, 1986- 840   Krasnoe Sormovo, Gorkiy, USSR 14.7.1958 10.1.1959 30.11.1959 // 10.1966 stricken 1996
(ex-С-352 [S-352]) 333, 1986- 843   Krasnoe Sormovo, Gorkiy, USSR 30.3.1958 25.9.1958 31.10.1959 // 1.1967 stricken 1996
(ex-С-351 [S-351]) 332, 1986- 846   Krasnoe Sormovo, Gorkiy, USSR 31.1.1958 18.8.1958 6.11.1959 // 10.1967 stricken 1996


Technical data


Displacement standard, t



Displacement normal, t

1330 / 1729

Length, m

76.6

Breadth, m

6.70

Draught, m

4.60

No of shafts

2

Machinery

2 37D diesels / 2 PG-101 electric motors

Power, h. p.

4000 / 2700

Max speed, kts

15.2 / 13

Fuel, t

diesel oil

Endurance, nm(kts)

7400(9.2) / 350(2)

Armament

8 - 533 TT (6 bow, 2 stern, 14 or 28 mines)

Electronic equipment

Flag radar, MG-200 Arktika-M, Tuloma, Svet-M sonars, Nakat ECM suite

Complement

58

Diving depth operational, m

240



Standard scale images


<i>711 </i>1970
711 1970


Graphics


<i>No 766 </i>1978
No 766 1978


Project history

Former Soviet Project 633 medium submarines.

Modernizations

None.

Naval service

In 1981 six were in service with pennant nos 415, 418, 421, 432, 455 and 477. In 1988 three with pennants 810, 816 and 819. In 1990 two (810 and 816).
