AL SIDDIQ seagoing minehunters (1997-1998/2007)

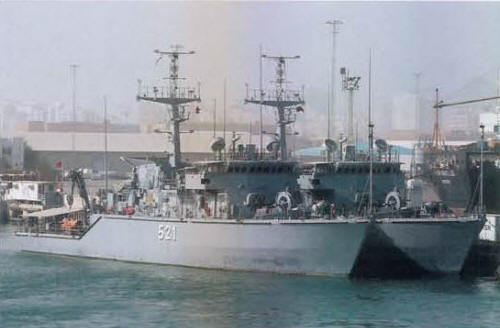

Al Siddiq 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| الصديق [Al Siddiq] (ex-Cardinal) | 521 | Intermarine USA, Savannah, USA | 13.4.1994 | 9.3.1996 | 18.10.1997 // 7.1.2007 | in service (2019) | |
| الفاروق [Al Farouk] (ex-Raven) | 524 | Intermarine USA, Savannah, USA | 1.4.1995 | 28.9.1996 | 5.9.1998 // 7.1.2007 | in service (2019) |
Technical data
| Displacement standard, t | 803 |
|---|---|
| Displacement full, t | 918 |
| Length, m | 53.1 pp 57.3 oa |
| Breadth, m | 11.0 |
| Draught, m | 2.84 normal 3.35 max |
| No of shafts | 2 Voith-Schneider |
| Machinery | 2 Isotta-Fraschini ID36SS 6V-AM diesels |
| Power, h. p. | 1160 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(12) |
| Armament | 2 x 1 - 12.7/90, SLQ-48(V)2 MNS UUV, SLQ-33 mechanical minesweeping gear |
| Electronic equipment | SPS-64(V)9 radar, SQQ-32(v)3 sonar, SSQ-94 CCS |
| Complement | 51 |
Standard scale images
Al Siddiq 2010
Graphics
Al Siddiq 2007
Project history
Former USN Osprey class minehunters.
Modernizations
None.
Naval service
No significant events.
