EL NASSER destroyers (1951-1952/1956-1968)





El Zaffer 1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
رشيد [El Nasser] (ex-Солидный [Solidny])     190 Zhdanov Yd, Leningrad, USSR 4.1.1952 17.8.1952 31.12.1952 // 6.1956 to USSR 7.1968 (Солидный [Solidny]) Project 30bis

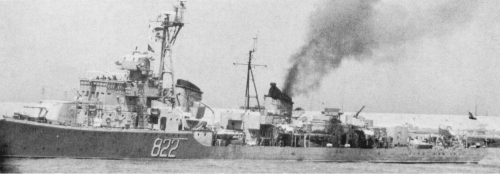

دمياط [El Zaffer] (ex-Сметливый [Smetlivy]) 822, 1981- 916   190 Zhdanov Yd, Leningrad, USSR 24.5.1951 17.11.1951 5.8.1952 // 6.1956 discarded 1985 Project 30bis
السويس [Suez] (ex-Бурный [Burny]) 888, 1981- 901   445 61 Kommunar Yd, Nikolayev, USSR 18.5.1950 29.8.1950 4.6.1951 // 1.1962 discarded 1985 Project 30bis
دمياط [Damiet] (ex-Беспощадный [Besposhchadny])     445 61 Kommunar Yd, Nikolayev, USSR 28.5.1950 30.9.1950 27.6.1951 // 1.1962 to USSR 7.1968 (Беспощадный [Besposhchadny]) Project 30bis
دمياط [Damiet] (ex-Бессменный [Bessmenny]) 844, 1981- 906   445 61 Kommunar Yd, Nikolayev, USSR 12.9.1951 31.3.1952 10.12.1952 // 6.1968 discarded 1985 Project 30BA
رشيد [El Nasser] (ex-Отчаянный [Otchayanny)], 1973-  أكتوبر6  v [6 October] 666, 1981- 911   402 Yd, Molotovsk, USSR 25.8.1951 29.12.1951 25.11.1952 // 6.1968 discarded 1985 Project 30BA


Technical data


Displacement standard, t

2316

Displacement full, t

3066

Length, m

120.5

Breadth, m

12.0

Draught, m

4.26

No of shafts

2

Machinery

2 TV-6 geared steam turbines sets, 4 KV-30 boilers

Power, h. p.

60000

Max speed, kts

35.5

Fuel, t

oil

Endurance, nm(kts)2900(18)
Armament

El Nasser(i), El Zaffer, Suez, Damiet(i): 2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 4 x 2 - 37/70 V-11, 2 x 5 - 533 TT, 6 DCT, 2 DCR (50), 52 - 60 mines

Damiet(ii), El Nasser(ii): 2 x 2 - 130/51 B-2LM, 1 x 4 - 57/75 ZIF-75, 2 x 2 - 37/70 V-11, 2 x 5 - 533 TT, 2 x 16 RBU-2500 Uragan-2 ASWRL, 6 DCT, 2 DCR (50), 52 - 60 mines

Electronic equipment

El Nassser(i): Giuys-1M, P-10, Rif-1, Rym-1, Zalp, Vympel-2, Zaria radars, Tamir-5N sonar

El Zaffer:: Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2, Redan-4 radars, Tamir-5N sonar

Suez, Damiet(i): Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2 radars, Tamir-5N sonar

El Nasser(ii): Fut-N, P-10, Fut-B, Rym-1, Zalp, Vympel-2, Don radars, GS-572 Gerkules sonar

Damiet(ii): Fut-N, P-10, Fut-B, Rym-1, Redan, Vympel-2, Don radars, GS-572 Gerkules sonar

Complement

286



Standard scale images


<i>Suez </i>1965
Suez 1965
<i>El Nasser </i>1970
El Nasser 1970


Graphics


<i>El Zaffer </i>1977
El Zaffer 1977
<i>El Zaffer </i>1978
El Zaffer 1978


Project history

Former Soviet destroyers of Project 30bis (first 4) and 30BA (last two, modernized specially for Egypt)

Modernizations

1978, El Zaffer: - 1 x 2 - 85/52, 2 x 2 - 37/70; + 2 x 1 SY-1 SSM (2 SY-1), 2 x 2 - 25/80 type 61

late 1970s, Suez, 6 October, Damiet: + 2 x 2 - 25/80 type 61

Naval service

No significant events.
