VEINTICINCO DE JULIO frigate (1943/1967)





25 de Julio 1968

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Veinteicinco de Julio (25 de Julio) (ex-Enright), 1978- Morán Valverde E12, 1970- D1, 1978- DD02   Philadelphia N Yd, USA 2/1943 29.5.1943 9/1943 // 14.7.1967 deleted 1989


Technical data


Displacement standard, t1725
Displacement full, t

2130

Length, m

91.4 wl 93.3 oa

Breadth, m

11.3

Draught, m

3.84 full load

No of shafts2
Machinery

2 General Electric steam turbo-generators, 2 Foster-Wheeler boilers, 2 electric motors

Power, h. p.

12000

Max speed, kts

23

Fuel, t

oil 350

Endurance, nm(kts)5500 (15)
Armament

1 x 1 - 127/38 Mk 30, 3 x 2 - 40/60 Mk 1, 6 x 1 - 20/70 Mk 10, 2 DCR

Military load

2 LCVP, 162 marines, deck cargo

Electronic equipment

SPS-6, SPS-10 radars, QGA sonar

Complement203


Standard scale images

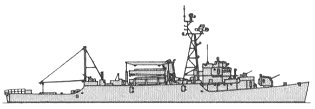

<i>Morán Valverde </i>1970
Morán Valverde 1970


Graphics

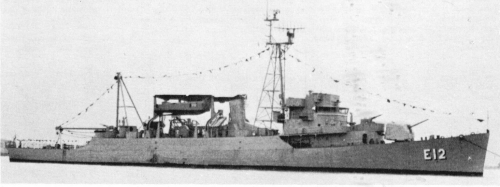

<i>25 de Julio </i>1968
25 de Julio 1968

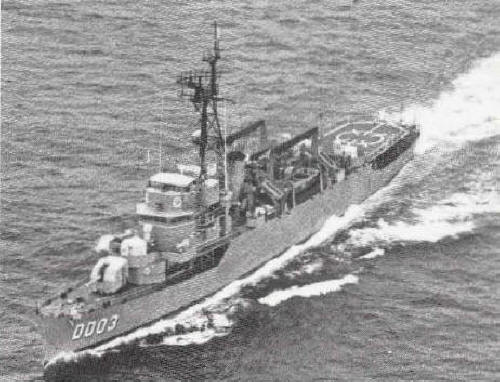

<i>25 de Julio </i>1974
25 de Julio 1974


Project history

Former USN APD class fast personnel transport, transferred under MDAP. Can carry 4 LCVPs on davits but carried only two to reduce top weight.

Modernizations

early 1970s: - 6 x 1 - 20/70; + helicopter deck

Naval service

No significant events.
