6 DE DICIEMBRE patrol craft (2006)

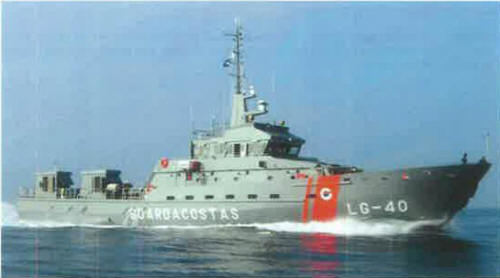

Isla Española 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 6 de Diciembre, 2007- Isla Fernandina | LG39 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) | |||
| 11 de Noviembre, 2007- Isla Española | LG40 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) | |||
| 11 de Abril, 2007- Isla San Salvador | LG41 | Astileros de Murueta, Spain | 1.2006 | Coast Guard, in service (2019) |
Technical data
| Displacement standard, t | 325 |
|---|---|
| Displacement full, t | |
| Length, m | 40.0 pp 45.0 oa |
| Breadth, m | 10.0 |
| Draught, m | 2.55 |
| No of shafts | 3 |
| Machinery | 2 MTU 16V4000 M90 diesels + 1 MTU 12V4000 M90 diesel |
| Power, h. p. | 7400+2780=10180 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(12) |
| Armament | 4 x 1 - 7.6/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 27 |
Standard scale images
Isla Fernandina 2010
Graphics
Isla Española 2006
Project history
FBM Babcock Marine design, derived from the Protector class. 5.2m-long fast RIB can be launched via stern ramp.
Modernizations
None.
Naval service
No significant events.
