ØRESUND gunboats (1875 - 1876)





Lille Bælt

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Øresund     Orlogsværftets, København   3.9.1874 1875 stricken 6.1912
Store Bælt     Orlogsværftets, København   20.5.1875 1875 stricken 6.1912
Lille Bælt     Orlogsværftets, København   26.8.1875 1876 stricken 2.1919


Technical data


Displacement normal, t

240

Displacement full, t
Length, m

26.1

Breadth, m8.00
Draught, m2.14
No of shafts2
Machinery
Power, h. p.200
Max speed, kts

7.5

Fuel, t

coal 19

Endurance, nm(kts)
Armament

1 x 1 - 254/18 M.1875, 2 x 1 - 84/13 M.1872

Complement

36



Graphics

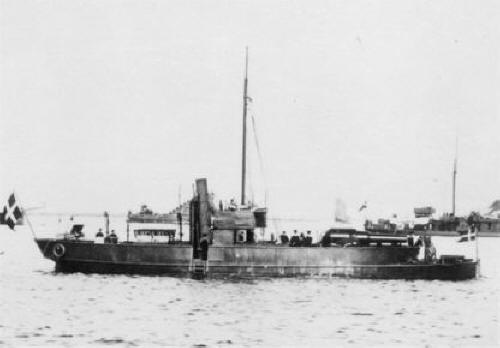

<i>Lille Bælt</i>
Lille Bælt


Project history

Iron-hulled gunboats of Rendell type.

Modernizations

1900s, all: was armed with 1 x 1 - 57/40 M.1885, 6 x 5 - 37/17 M.1875

Naval service

No significant events.
