Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
MR152 (ex-R152)		2441	Burmester, Burg-Lesum, Germany			8.1940 // 12.1945	stricken 1951
MR153 (ex-R153)		2442	Burmester, Burg-Lesum, Germany			8.1940 // 12.1945	stricken 1947
MR154 (ex-R154), 1951- Asnæs	1951- M547	2443	Burmester, Burg-Lesum, Germany			9.1940 // 12.1945	stricken 1961
MR155 (ex-R155), 1951- Bognæs	1951- M548	2444	Burmester, Burg-Lesum, Germany			9.1940 // 12.1945	stricken 1957
MR156 (ex-R156), 1951- Dyrnæs	1951- M549	2445	Burmester, Burg-Lesum, Germany			10.1940 // 12.1945	stricken 1957
MR157 (ex-R157), 1951- Egenæs	1951- M550	2446	Burmester, Burg-Lesum, Germany			11.1940 // 12.1945	stricken 1961
MR160 (ex-R160)		2455	Burmester, Burg-Lesum, Germany			1.1941 // 11.1945	stricken 1948
MR167 (ex-R167), 1951- Helgenæs	1951- M551	2462	Burmester, Burg-Lesum, Germany			5.1941 // 7.1949	stricken 1960
MR168 (ex-R168), 1951- Lynæs	1951- M552	2463	Burmester, Burg-Lesum, Germany			5.1941 // 12.1949	stricken 1960
MR170 (ex-R170)		2465	Burmester, Burg-Lesum, Germany			7.1941 // 11.1947	stricken 1960
MR173 (ex-R173)		2468	Burmester, Burg-Lesum, Germany			8.1941 // 12.1945	stricken 1951
MR174 (ex-R174), 1951- Rinkenæs		2469	Burmester, Burg-Lesum, Germany			9.1941 // 11.1947	stricken 1960
MR175 (ex-R175)		2470	Burmester, Burg-Lesum, Germany			10.1941 // 11.1947	stricken 1960
MR176 (ex-R176)		2471	Burmester, Burg-Lesum, Germany			10.1941 // 11.1947	stricken 1960
MR214 (ex-R214)		2768	Burmester, Burg-Lesum, Germany			1.1943 // 9.1945	stricken 1951

Technical data

Displacement standard, t	110
Displacement full, t	MR152 - 176: 126 MR214: 128
Length, m	MR152 - 176: 34.4 wl 35.4 oa MR214: 34.4 wl 36.2 oa
Breadth, m	5.55
Draught, m	MR152 - 176: 1.38 normal 1.50 deep load MR214: 1.40 normal 1.50 deep load
No of shafts	2
Machinery	2 MWM diesels
Power, h. p.	1800
Max speed, kts	23.5
Fuel, t	diesel oil 10
Armament	1 x 1 - 37/83 SK C/30, 2 x 2 - 20/65 C/38, 2 x 1 - 20/65 C/38, DCR, 10 mines, mechanical minesweeping gear
Complement	29 - 31

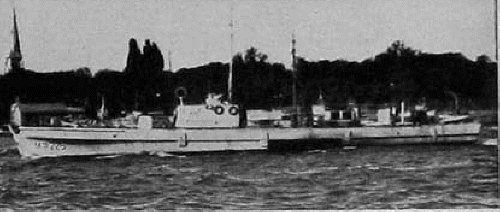

Standard scale images

Graphics

Project history

Former German R151 class R-boats, received from Allies.

Modernizations

None.

Naval service

No significant events.
