LCP1 assault launches (2004-2005)
LCP3 2010
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LCP1-4 SAR1 Dagma SAR2 Naja |
Storebro, Västervik, Sweden: LCP1-4, SAR1, 2 |
2004-2005: LCP1-4, SAR1, 2 |
no |
no |
in service (2019): LCP1-4, SAR1, 2 |
Technical data
| Displacement standard, t | 7 |
|---|---|
| Displacement full, t | 9 |
| Length, m | 10.8 pp 11.9 oa |
| Breadth, m | 2.90 |
| Draught, m | 0.70 |
| No of shafts | 1 waterjet |
| Machinery | 1 Scania DSI14V8 diesel |
| Power, h. p. | 625 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 200(40) |
| Armament | none |
| Military load | 10 troops |
| Electronic equipment | radar |
| Complement | 2 |
Graphics

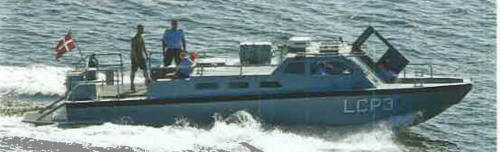

LCP3 2010
Project history
GRP hull. LCP1-4 are carried by Absalon class ships, SAR1 and 2 were built for Knud Rasmussen class ships.
Modernizations
None.
Naval service
No significant events.
