BESKYTTEREN frigate (1976)

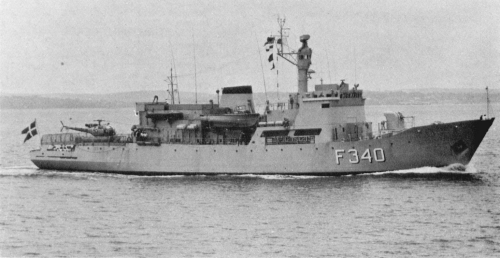

Beskytteren 1977

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Beskytteren F340   Aalborg Værft 15.12.1974 27.5.1975 27.2.1976 to Estonia 11.2000 (Admiral Pitka)


Technical data


Displacement standard, t
Displacement full, t

1970

Length, m

74.4

Breadth, m

11.8

Draught, m

4.50

No of shafts

1

Machinery

4 Burmeister & Wain Alpha diesels

Power, h. p.

7440

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)

6000(13)

Armament

1 x 1 - 76/50 Mk 26, 1 helicopter (Alouette III)

Electronic equipmentAWS-1/CWS-2, NWS-1, NWS-2 radars, PMS-26 sonar
Complement

60



Standard scale images


<i>Beskytteren </i>1980
Beskytteren 1980
<i>Beskytteren </i>2000
Beskytteren 2000


Graphics


<i>Beskytteren </i>1977
Beskytteren 1977


Project history

Officially rated as 'inspection vessel' (Fishery protection). Modified Hvidbjørnen. Specialty designed and equipped for fishery protection in Greenland waters.

Modernizations

1982: - Alouette III helicopter; + Lynx helicopter

1987: - AWS-1/CWS-2, NWS-1, NWS-2 radars; + AWS-6, Scanter Mil 009 radars, Cutlass B-1 ECM suite, 2x Sea Gnat decoy RL

Naval service

No significant events.
