P8 2nd class torpedo boats (1894-1895)
P8
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P8, 9 |
Orlogsværftets, København: P8, 9 |
1894: P8 1895: P9 |
no |
no |
1927: P9 1930: P8 |
Technical data
| Displacement normal, t |
|
|---|---|
| Displacement full, t | 48 |
| Length, m | 25.6 |
| Breadth, m | 3.82 |
| Draught, m | 1.83 |
| No of shafts | 1 |
| Machinery | 1 VTE |
| Power, h. p. | 330 |
| Max speed, kts | 13 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 47/40 M.1885, 1 x 5 - 37/17 M.1875, 1 x 1 - 356 TT |
| Complement | 13 |
Graphics

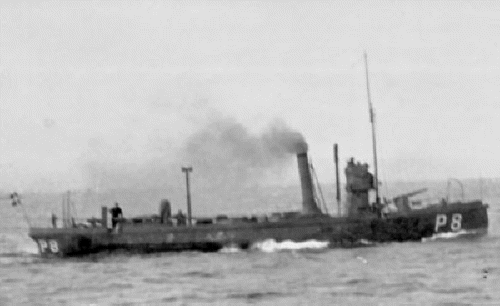

P8
Project history
Small torpedo boats, rated later as patrol boats.
Modernizations
None.
Naval service
No significant events.
