TERNEN fishery protection cutter (1937)





Ternen

Ships


Names Builders Commissioned Losses Transfers Discarding

Ternen, 1951- A544 Ternen, 1.1953- Y381 Ternen

Andersen, Svendborg: Ternen

2/1937: Ternen

none

none

12/1957: Ternen



Technical data


Displacement standard, t82
Displacement full, t
Length, m

20.9

Breadth, m

5.10

Draught, m

2.95

No of shafts

1

Machinery

1 Møller & Jochumsen diesel

Power, h. p.

110

Max speed, kts

8

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 37/20 M.1875

Complement

11



Graphics

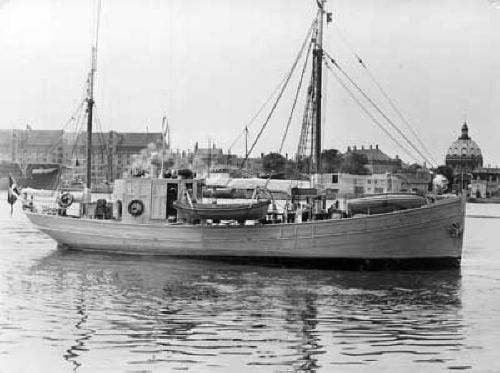

<i>Ternen</i>
Ternen


Project history

Perhaps, fishery protection ships were unique ships of Danish Navy, intended for operations in high seas, though, of course, it is very difficult to consider them as rigorous warships. They represented very variegated company: huge, to Danish measures, Ingolf with more than 1000t displacement, armed with 120mm guns and carrying a seaplane, and small 80t Ternen with 37mm gun.

Modernizations

None.

Naval service

Ternen served at Greenland during WWII and was never captured by Germans.
