DMH70 Home Guard boats (1958)





MHV70 1979

Ships


Name Yard No No Builder Laid down Launched Comp Fate
1988- Saturn   DMH70, 1969- MHV70 Orlogsværftets, København   11.11.1957 2.1958 stricken 3.2007
1988- Scorpius   DMH71, 1969- MHV71 Orlogsværftets, København   6.12.1957 3.1958 stricken 9.2005
1988- Sirius   DMH72, 1969- MHV72 Orlogsværftets, København   28.1.1958 4.1958 stricken 6.2006


Technical data


Displacement standard, t78
Displacement full, t130
Length, m

20.1

Breadth, m

5.10

Draught, m

2.50

No of shafts

1

Machinery

1 diesel

Power, h. p.

200

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 1 - 7.6/92

Electronic equipmentNWS-3 radar
Complement

6



Graphics

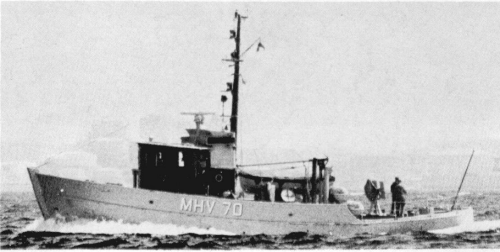

<i>MHV70</i> 1979
MHV70 1979


Project history

Patrol boats and training craft for the Naval Home Guard.

Modernizations

None.

Naval service

No significant events.
