INGOLF fishery protection vessel (1934)





Ingolf 1934

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ingolf     Orlogsværftets, København 1.1930 23.9.1933 4.1934 captured by Germany 8.1943 (Sleipner)


Technical data


Displacement standard, t1180
Displacement full, t1357
Length, m

68.8

Breadth, m

10.8

Draught, m

4.78

No of shafts

1

Machinery

1 VTE, 2 Thornycroft boilers

Power, h. p.

2935

Max speed, kts

16.2

Fuel, t

oil 170

Endurance, nm(kts)6000(11)
Armament

2 x 1 - 120/52 M.32, 2 x 1 - 57/40 M.1885, 2 x 1 - 20/56 Madsen, 2 x 1 - 8.80, 1 seaplane (MF.11?)

Complement

66



Standard scale images


<i>Ingolf</i> 1940
Ingolf 1940


Graphics

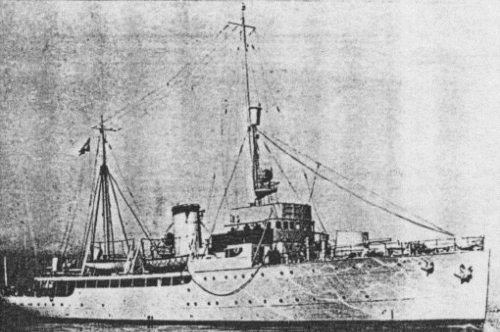

<i>Ingolf</i> 1934
Ingolf 1934


Project history

Perhaps, fishery protection ships were unique ships of Danish Navy, intended for operations in high seas, though, of course, it is very difficult to consider them as rigorous warships. They represented very variegated company: huge, to Danish measures, Ingolf with more than 1000t displacement, armed with 120mm guns and carrying a seaplane, and small 80t Ternen with 37mm gun.

Modernizations

None.

Naval service

Ingolf 29.8.1943 was captured by Germans in Great Belt and commissioned by them as Sleipner.
