HAVØRNEN fishery protection vessel (1979)
Havørnen 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Havørnen | Frederikshavn Værft | 7.1979 | to Namibia 10.1992 (Tobias Hainyeko) |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | 506 |
| Length, m | 45.8 pp 50.0 oa |
| Breadth, m | 10.5 |
| Draught, m | 2.75 |
| No of shafts | 2 |
| Machinery | 2 B&W Alpha 16V23L-VO diesels |
| Power, h. p. | 4640 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(16) |
| Armament | helicopter deck |
| Electronic equipment | Furuno FRM-64 radar |
| Complement | 15 |
Graphics

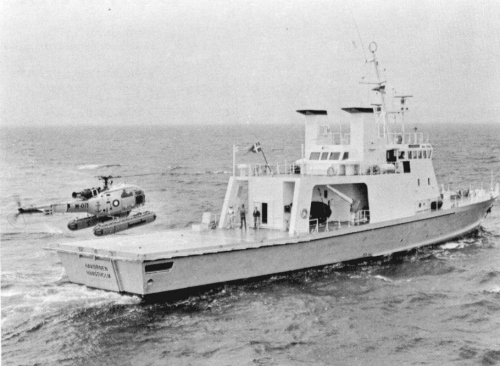

Havørnen 1979
Project history
Fishery protection vessel.
Modernizations
None.
Naval service
None.
