MAAGEN patrol boats (1960)





Maagen 1976 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Maagen Y384 356 Helsingør Skibs & Maskinbyggeri 1.1960 19.3.1960 5.1960 stricken 12.1991
Mallemukken Y385 357 Helsingør Skibs & Maskinbyggeri 1.1960 19.3.1960 5.1960 stricken 12.1991


Technical data


Displacement standard, t

190

Displacement full, t205
Length, m

27.0

Breadth, m

7.20

Draught, m

2.90

No of shafts

1

Machinery

1 B & W Alpha diesel

Power, h. p.

385

Max speed, kts

10.5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 40/60 Mk 3

Electronic equipment2x NWS-3 radars
Complement

13



Standard scale images


<i>Maagen </i>1990
Maagen 1990


Graphics

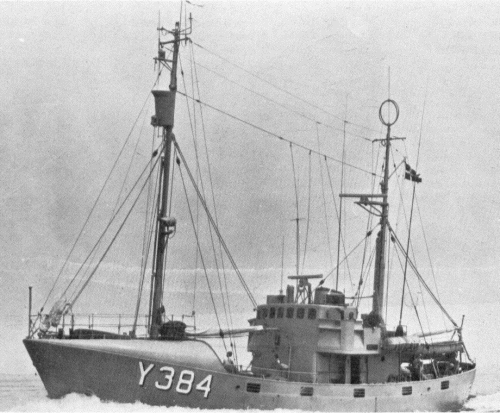

<i>Maagen </i>1976 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Maagen 1976 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Patrol boats for Greenland waters. Steel hull.

Modernizations

1970s, both: - 1 x 1 - 37/20; + 1 x 1 - 20/70 Mk 7

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
