OMH3 river motor launches (1924)
OMh4
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
OMh3 - 5 |
Ústecká s. r. o.: OMh3 - 5 |
1924: OMh3 - 5 |
none |
none |
1939: OMh3 - 5 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 24 |
| Length, m | 16.9 |
| Breadth, m | 2.80 |
| Draught, m | 0.80 max |
| No of shafts | 1 |
| Machinery | 1 Škoda petrol engine |
| Power, h. p. | 100 |
| Max speed, kts | 10.8 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.9/67 |
| Complement | 9 |
Standard scale images
OMh3 1924
Graphics

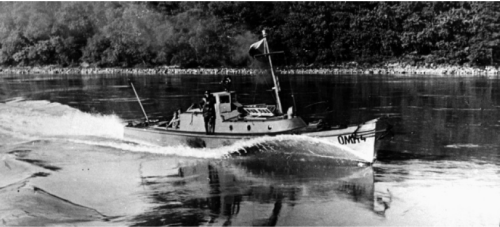

OMh4
Project history
Wooden-hulled patrol launches originally built for Austria-Hungary but completed only in 1924.
Modernizations
None.
Naval service
No significant events.
