POSEIDON patrol boats (1991)

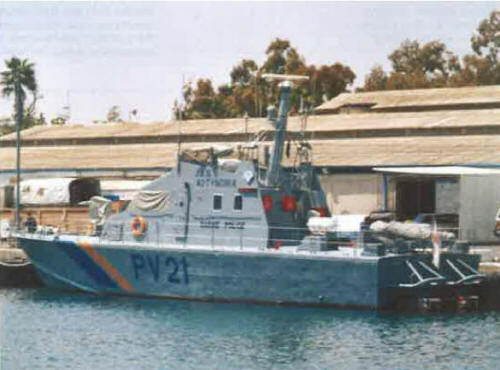

Evagoras 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PV20 Ποσειδων [Poseidon] PV21 Ευαγόρας [Evagoras] |
Brodotekhnika, Belgrade, Yugoslavia: PV20, 21 |
1991: PV20, 21 |
none |
none |
in service (2019): PV20, 21 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 57 |
| Length, m | 20.6 pp 24.6 oa |
| Breadth, m | 5.70 |
| Draught, m | 1.05 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 4270 |
| Max speed, kts | 42 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(20) |
| Armament | 1 x 1 - 25/80 KBA, 2 x 1 - 12.7/90 |
| Electronic equipment | JRC radar |
| Complement | 9 |
Graphics
Evagoras 2006
Project history
Maritime Police. Yugoslavian FAC-23 design. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
