CYPRUS
COASTAL FORCES
ARKHIPLOIARKHOS ANDREAS IOANNIDES patrol craft (2018-)

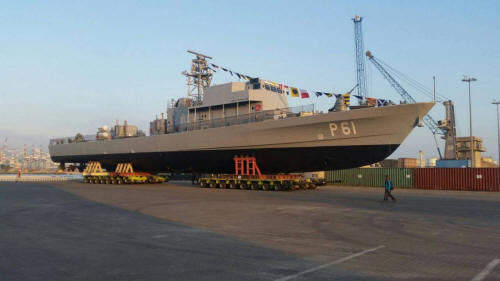

Arkhiploiarkhos Andreas Ioannides 2017
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Αρχιπλοίαρχος Ανδρέας Ιωαννίδης [Arkhiploiarkhos Andreas Ioannides] | P61 | Israeli SY, HAifa, Israel | 12.9.2017 | 15.1.2018 | in service (2019) |
Technical data
| Displacement standard, t | 430 |
|---|---|
| Displacement full, t | 450 |
| Length, m | 61.8 |
| Breadth, m | 7.62 |
| Draught, m | 2.77 |
| No of shafts | 3 |
| Machinery | 3 diesels |
| Power, h. p. | |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3200(16) |
| Armament | 2 x 1 - 23/82 Typhoon, 2 x 1 - 12.7/79 |
| Electronic equipment | 2x radars |
| Complement | 30 |
Standard scale images
similar Greek Fournoigo 2015
Graphics
Arkhiploiarkhos Andreas Ioannides 2017
Project history
Israeli Sa'ar OPV-62 design, ordered in 2015 with option for the second ship.
Modernizations
None.
Naval service
No significant events.
