MARIEL frigates (1981-1988)

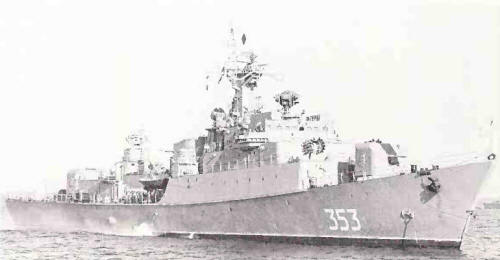

Moncada 1988
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mariel (ex-СКР-28 [SKR-28]) | 350 | 251 | Gorkiy Yd, Zelenodolsk, USSR | 17.7.1979 | 21.6.1980 | 30.12.1980 // 24.9.1981 | stricken 1997 |
| Moncada (ex-СКР-451 [SKR-451]) | 353 | 257 | Gorkiy Yd, Zelenodolsk, USSR | 6.5.1986 | 3.5.1987 | 25.12.1987 // 10.4.1988 | stricken 1998 |
| (ex-СКР-471 [SKR-471]) | 356 | 253 | Gorkiy Yd, Zelenodolsk, USSR | 24.4.1981 | 31.7.1982 | 17.8.1983 // 2.1984 | stricken 1996 |
Technical data
| Displacement standard, t | 1520 |
|---|---|
| Displacement normal, t | 1673 |
| Length, m | 96.5 |
| Breadth, m | 12.6 |
| Draught, m | 3.32 hull 5.74 max |
| No of shafts | 3 |
| Machinery | 1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts) |
| Power, h. p. | 20000 + 16000 = 36000 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(14) |
| Armament | 1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
| Electronic equipment | MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
| Complement | 108 |
Standard scale images
Mariel 1985
Graphics
Moncada 1988
Project history
Small frigates of Soviet export project 1159T.
Modernizations
None.
Naval service
No significant events.
