ULISES patrol vessel (1969/2018)
Ulises 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Ulises (ex-Golfo de Tonkin) | 085 | Astilleros Vigo, Spain | 11.1969 | 1969 // 2018 | in service (2019) |
Technical data
| Displacement standard, t | 1000 |
|---|---|
| Displacement full, t | 1590 |
| Length, m | 76.0 |
| Breadth, m | 12.0 |
| Draught, m | 4.60 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 2670 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement |
Graphics

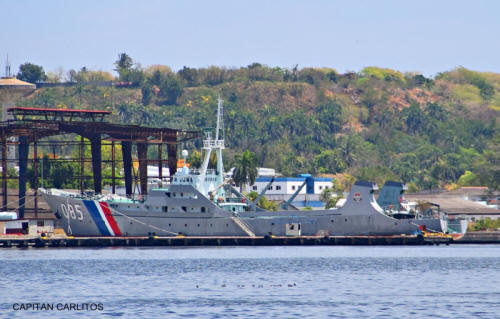

Ulises 2018
Project history
Former fishing trawler, served since 2012 in Guardia Frontera as survey vessel Ulises and converted in 2018 to patrol.
Modernizations
None.
Naval service
No significant events.
