ORIENTE submarine chasers (1943/1947)

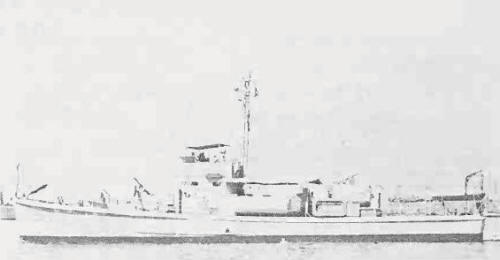

Habana

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Oriente (ex-SC1000) GC104   Dingle Boat, St. Paul, USA 4.1942 22.10.1942 5.1943 // 7.1947 deleted 1976
Camaguey (ex-SC1001) GC105   Dingle Boat, St. Paul, USA 5.1942 5.11.1942 3.1943 // 7.1947 lost 1961?
Las Villas (ex-SC1290) GC106   W. A. Robinson, Ipswich, USA 8.1942 16.3.1943 4.1943 // 6.1947 deleted 1976
Habana (ex-SC1291) GC107   W. A. Robinson, Ipswich, USA

9/1942

30.3.1943 5.1943 // 6.1947 deleted 1976
Pinar del Río (ex-SC1301) GC108   Perkins & Vaughan, Wickford, USA 9.1942 15.5.1943 8.1943 // 8.1947 deleted 1976


Technical data


Displacement standard, t

121

Displacement full, t

136

Length, m

32.8 wl 33.8 oa

Breadth, m

5.50

Draught, m

2.00 full load

No of shafts2
Machinery

2 General Motors diesels

Power, h. p.

1000

Max speed, kts

16

Fuel, tdiesel oil 18
Endurance, nm(kts)1500 (12)
Armament

1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR (34)

Electronic equipment

SF or SO or SU or SCR-517A or SW-1C radar, QC sonar

Complement27


Graphics


<i>Habana</i>
Habana


Project history

Former USN 110ft submarine chasers.

Modernizations

None.

Naval service

Fate of Camaguey is unknown.
