CUBA
COASTAL FORCES
101 fast attack hydrofoil (torpedo) (1979-1983)

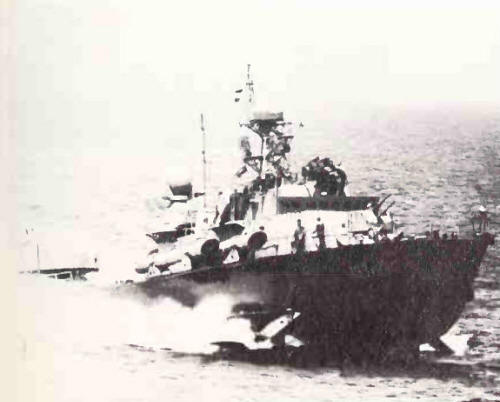

1984

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  101 815 Vladivostok SYd, USSR     2.1979 stricken 1992
  102 816 Vladivostok SYd, USSR     2.1979 stricken 1992
  108 817 Vladivostok SYd, USSR     2.1980 stricken 1992
  112 818 Vladivostok SYd, USSR     2.1980 stricken 1996
  130 819 Vladivostok SYd, USSR     2.1981 stricken 1996
  165 820 Vladivostok SYd, USSR     2.1981 stricken 1996
  178 821 Vladivostok SYd, USSR     1.1983 stricken 1996
  180 822 Vladivostok SYd, USSR     1.1983 stricken 1996
  193 823 Vladivostok SYd, USSR     11.1983 stricken 1996


Technical data


Displacement standard, t

218
Displacement full, t

250
Length, m

39.5
Breadth, m

7.5 wl 13.6 foil
Draught, m

1.64 hull 3.24 foil
No of shafts

3
Machinery

3 M-504B diesels
Power, h. p.

15000
Max speed, kts

44
Fuel, t

diesel oil
Endurance, nm(kts)

1450(14)
Armament

1 x 2 - 57/50 AK-725, 1 x 2 - 25/82 2M-3M, 4 - 533 TT, 2 DCR (10)
Electronic equipment

MR-102 Baklan, MR-103 Bars, MR-206 radars, Dozor-1 CCS
Complement

25


Standard scale images


<i>101 </i>1980
101 1980


Graphics


1984
1984


Project history

Soviet torpedo hydrofoils of export project 206ME.

Modernizations

None.

Naval service

No significant events.
