CUBA
COASTAL FORCES
No 306 large patrol craft (1958-1960/1964-1967)





No 649 1970

Ships


Name No Yard No Builder Laid down Launched Comp Fate
i   555 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1979?
ii   556 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1979?
iii   557 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1981?
iv   563 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1984?
v   564 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1984?
vi   565 532 Yd, Kerch', USSR     1958/60 // 9.1964 discarded 1984?
vii   582 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1985?
viii   583 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1985?
ix   584 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1990?
x   585 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1990?
xi   586 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1992?
xii   587 532 Yd, Kerch', USSR     1958/60 // 1967 discarded 1992?


Technical data


Displacement standard, t

190

Displacement full, t

216

Length, m

41.7

Breadth, m

6.18

Draught, m

1.85

No of shafts

3

Machinery

3 40DM diesels

Power, h. p.

6600

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

2 x 2 - 25/80 2M-3M, 4 x 5 RBU-1200 Uragan ASWRL, 2 DCR (24), 18 mines

Electronic equipment

i-xi: Reya radar, Tamir-2 sonar

xii: Reya radar, MG-11 sonar

Complement

27



Standard scale images


<i>No 306 </i>1970
No 306 1970


Graphics

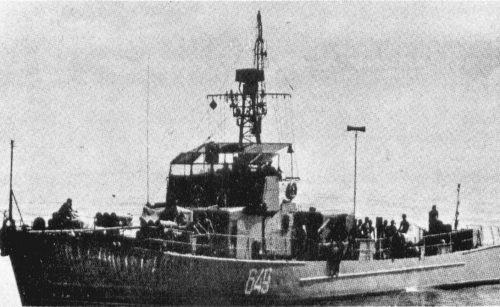

<i>No 649 </i>1970
No 649 1970


Project history

Former Soviet Project 201M small ASW ships / ASW craft.

Modernizations

None.

Naval service

No significant events.
