ASTRONAUTA FRANKLIN CHANG patrol boat (1958/1989)

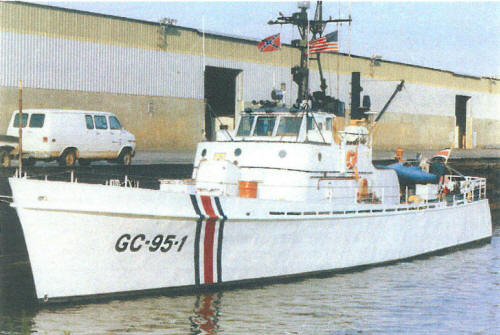

Astronauta Franklin Chang 1989
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SP951 Astronauta Franklin Chang (ex-Cape Henlopen, ex-WPB95328), 2001- 95-1 Astronauta Franklin Chang |
USCG Yard, Curtis Bay, USA: SP951 |
1958 // 1989: SP951 |
None |
None |
2010: 95-1 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 90 |
| Length, m | 29.0 |
| Breadth, m | 6.10 |
| Draught, m | 1.55 |
| No of shafts | 2 |
| Machinery | 2 General Motors 16V149TI diesels |
| Power, h. p. | 2470 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1900(11.5) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 14 |
Standard scale images
Astronauta Franklin Chang 1990
Graphics
Astronauta Franklin Chang 1989
Project history
Former USCG Cape-class cutter.
Modernizations
None.
Naval service
No significant events.
