ANTIOQUIA destroyer (1943/1960)
Antioquia 1970
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Antioquia (ex-Hale) | D01 | Bath Iron Wks, USA | 11.1942 | 4.4.1943 | 6/1943 // 12.1960 | discarded 12.1973 |
Technical data
| Displacement standard, t | 2276 |
|---|---|
| Displacement full, t | 3005 |
| Length, m | 112.5 wl 114.7 oa |
| Breadth, m | 12.1 |
| Draught, m | 4.19 full load |
| No of shafts | 2 |
| Machinery | 2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
| Power, h. p. | 60000 |
| Max speed, kts | 38 |
| Fuel, t | oil 492 |
| Endurance, nm(kts) | 6500 (15) |
| Armament | 4 x 1 - 127/38 Mk 30, 3 x 2 - 76/50 Mk 33, 1 x 5 - 533 TT, 6 DCT, 2 DCR (56) |
| Electronic equipment | SPS-6, SPS-10, Mk 25, Mk 34 radars, QHB sonar |
| Complement | 273 |
Standard scale images

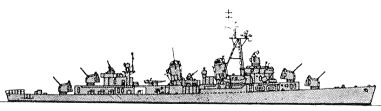

Antioquia 1960
Graphics

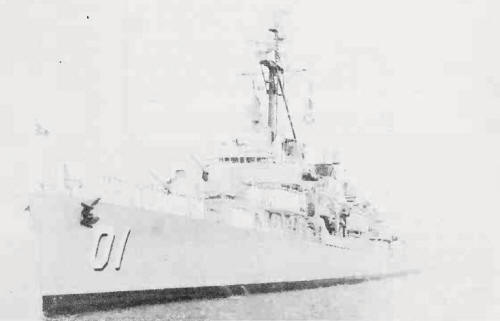

Antioquia 1970
Project history
Former USN Fletcher class destroyer, modernized with 76mm guns.
Modernizations
None.
Naval service
No significant events.
