5! DILIGENTE river patrol craft (1952-1954)





Vengadora 2000

Ships


Names Builders Commissioned Losses Transfers Discarding

LR121, later- LR138, 2010- PF121 Diligente

LR122, 2010- PF122 TE Juan Lucio

LR123, 2010- PF123 CD Alfonso Vargas

LR124, 2010- PF124 CP Fritz Hagale

LR125, later- LR139, 2010- PF125 Alberto Restrepo, later- Vengadora

LR126, 2010- PF126 Humberto Cortés

LR127 Calibio

LR128, 2010- PF128 Carlos Galindo

LR129 Valerosa

LR130 Luchadora

Astillero Naval, Cartagena: LR121-130

1952: LR121, 123, 124

1953: LR122, 126, 127

1954: LR125, 128-130

none

none

2010: LR127, 129, 130

2017-18: PF121-126, 128



Technical data


Displacement standard, t
Displacement full, t

33

Length, m

23.2

Breadth, m

3.70

Draught, m

0.80

No of shafts

2

Machinery

2 General Motors Detroit Diesel 4-71 diesels

Power, h. p.

280

Max speed, kts

13

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

LR121, 125: 1 x 2 - 12.7/90, 2 x 1 - 7.6/90

LR122-124, 126-130: 2 x 1 - 20/70 Mk 10 or (1 x 1 - 20/70 Mk 10, 4 x 1 - 81/12 M29 mortars)

Complement10


Graphics

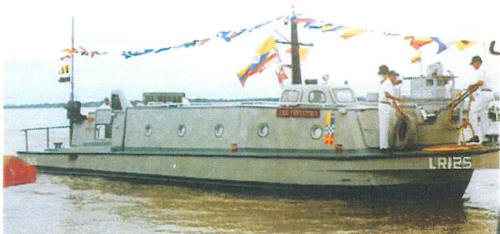

<i>Vengadora </i>2000
Vengadora 2000


Project history

Small river patrol boats. No radars.

Modernizations

None.

Naval service

No significant events.
