HUOQIU minehunter/minesweeper (project 082II, 2005-2016)

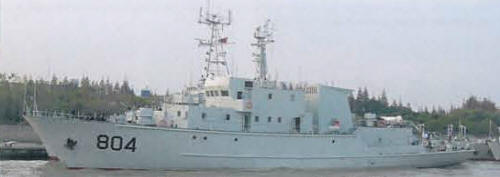

Huoqiu 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 霍邱 [Huoqiu] | 804 | Qiuxin, Shanghai | 4.2004 | 6.2005 | in service (2019) | ||
| 开平 [Kaiping] | 809 | Jiangnan, Changxing | 2014 | 6.5.2015 | in service (2019) | ||
| 容城 [Rongcheng] | 811 | Jiangnan, Changxing | 2015 | 25.1.2016 | in service (2019) | ||
| 东港 [Donggang] | 814 | Jiangnan, Changxing | 2016 | 29.12.2016 | in service (2019) | ||
| 昆山 [Kunshan] | 818 | Jiangnan, Changxing | 2.11.2010 | 25.12.2011 | in service (2019) |
Technical data
| Displacement standard, t | 575 |
|---|---|
| Displacement full, t | 700 |
| Length, m | 55.0 |
| Breadth, m | 9.30 |
| Draught, m | 2.60 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 15.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 804, 818: 2 x 2 - 25/80 type 61, mines, 2 IJM-01 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear others: 1 x 1 - 30/77 PJ-14, mines, 2 IJM-01 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear |
| Electronic equipment | radar, side-scanning minehunting sonar |
| Complement |
Standard scale images
Huoqiu 2015
Kunshan 2015
Graphics
Huoqiu 2008
Project history
Minehunters. Fiberglass hull. Can be used as command ships for Type 529 minesweeping drones.
Modernizations
None.
Naval service
No significant events.
