TIANZHUSHAN tank landing ships (project 072A, 2003-2016)





Daqingshan 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
天柱山 [Tianzhushan] 911   Dalian SY   1.7.2003 2003 in service (2019) Type 072A
大青山 [Daqingshan] 912   Dalian SY   1.7.2003 2004 in service (2019) Type 072A
八仙山 [Baxianshan] 913   Zhonghua, Shanghai   23.4.2003 10.2003 in service (2019) Type 072A
华顶山 [Huadingshan] 992   Wuchang, Wuhan   1.12.2003 2004 in service (2019) Type 072A
罗霄山 [Luoxiaoshan] 993   Zhonghhua, Shanghai   18.7.2003 1.2004 in service (2019) Type 072A
戴云山 [Dayunshan] 994   Wuchang, Wuhan   16.12.2003 2004 in service (2019) Type 072A
万羊山 [Wanyangshan] 995   Zhonghua SY, Shanghai   26.11.2003 2004 in service (2019) Type 072A
老铁山 [Laotieshan] 996   Dalian SY   1.1.2004 2005 in service (2019) Type 072A
云雾山 [Yunwushan] 997   Wuchang, Wuhan   2004 2005 in service (2019) Type 072A
大别山 [Dabieshan] 981   Wuchang, Wuhan   29.9.2014 23.5.2015 in service (2019) Type 072B
太行山 [Taihanshan] 982   Wuchang, Wuhan   28.12.2014 22.10.2015 in service (2019) Type 072B
武夷山 [Wuyishan] 914   Fujian Baima, Xiabaishi 8/2013 6.2.2015 7.3.2016 in service (2019) Type 072B
徂徕山 [Qionglaishan] 915   Fujian Baima, Xiabaishi   6.2015 7.3.2016 in service (2019) Type 072B
天目山 [Tianmushan] 916   Wuchang, Wuhan   28.7.2015 12.1.2016 in service (2019) Type 072B
五台山 [Wutaishan] 917   Fujian Baima, Xiabaishi   2015 7.3.2016 in service (2019) Type 072B


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Type 072A 天柱山 [Tianzhushan] 911   Dalian SY   1.7.2003 2003 in service (2019) 大青山 [Daqingshan] 912   Dalian SY   1.7.2003 2004 in service (2019) 八仙山 [Baxianshan] 913   Zhonghua, Shanghai   23.4.2003 10.2003 in service (2019) 华顶山 [Huadingshan] 992   Wuchang, Wuhan   1.12.2003 2004 in service (2019) 罗霄山 [Luoxiaoshan] 993   Zhonghhua, Shanghai   18.7.2003 1.2004 in service (2019) 戴云山 [Dayunshan] 994   Wuchang, Wuhan   16.12.2003 2004 in service (2019) 万羊山 [Wanyangshan] 995   Zhonghua SY, Shanghai   26.11.2003 2004 in service (2019) 老铁山 [Laotieshan] 996   Dalian SY   1.1.2004 2005 in service (2019) 云雾山 [Yunwushan] 997   Wuchang, Wuhan   2004 2005 in service (2019) Type 072B 大别山 [Dabieshan] 981   Wuchang, Wuhan   29.9.2014 23.5.2015 in service (2019) 太行山 [Taihanshan] 982   Wuchang, Wuhan   28.12.2014 22.10.2015 in service (2019) 武夷山 [Wuyishan] 914   Fujian Baima, Xiabaishi 8/2013 6.2.2015 7.3.2016 in service (2019) 徂徕山 [Qionglaishan] 915   Fujian Baima, Xiabaishi   6.2015 7.3.2016 in service (2019) 天目山 [Tianmushan] 916   Wuchang, Wuhan   28.7.2015 12.1.2016 in service (2019) 五台山 [Wutaishan] 917   Fujian Baima, Xiabaishi   2015 7.3.2016 in service (2019)

Technical data


Displacement standard, t3770
Displacement normal, t

5000
Length, m

130.0
Breadth, m

16.4
Draught, m3.20
No of shafts

2
Machinery

2 SEMT-Pielstick 12PA6V-280MPC diesels
Power, h. p.

9600
Max speed, kts

17
Fuel, t

diesel oil
Endurance, nm(kts)3000(14)
Armament

type 072A: 1 x 2 - 37/63 PJ-76F, helicopter deck

type 072B: 1 x 1 - 30/77 PJ-17, helicopter deck
Military load

2 LCVP, 10 main battle tanks or 500 t of cargo, 250 troops
Electronic equipment2x type 756, JPT-4G radars
Complement

120


Standard scale images

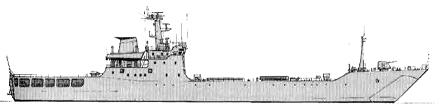

<i>Tianzhushan </i>2010
Tianzhushan 2010


Graphics

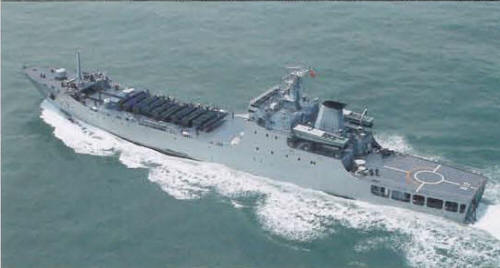

<i>Daqingshan </i>2007
Daqingshan 2007


Project history

Enlarged variant of Type 072III. Stern ramp. 2 type 724 LCAC can be taken via stern ramp.

Modernizations

None.

Naval service

No significant events.
