EMEISHAN tank landing ships (project 072III, 1992-2002)





Putuoshan 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
峨眉山 [Emeishan] 991   Zhonghua SY, Shanghai   9.1991 9.1992 in service (2019)
丹霞山 [Danxiashan] 934   Zhonghua SY, Shanghai   4.1995 9.1995 in service (2019)
雪峰山 [Xuefengshan] 935   Zhonghua SY, Shanghai   7.1995 12.1995 in service (2019)
海洋山 [Haiyangshan] 936   Zhonghua SY, Shanghai   12.1995 5.1996 in service (2019)
青城山 [Qingchengshan] 937   Zhonghua SY, Shanghai   4.1996 8.1996 in service (2019)
雁荡山 [Yandangshan] 908   Zhonghua SY, Shanghai   8.1996 1.1997 in service (2019)
九华山 [Jiuhuashan] 909   Zhonghua SY, Shanghai   11.1999 4.2000 in service (2019)
黄岗山 [Huanggangshan] 910   Zhonghua SY, Shanghai   5.2000 12.2001 in service (2019)
普陀山 [Putuoshan] 939   Zhonghua SY, Shanghai   4.2001 8.2001 in service (2019)
天台山 [Tiantaishan] 940   Zhonghua SY, Shanghai   12.2001 4.2002 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate 峨眉山 [Emeishan] 991   Zhonghua SY, Shanghai   9.1991 9.1992 in service (2019) 丹霞山 [Danxiashan] 934   Zhonghua SY, Shanghai   4.1995 9.1995 in service (2019) 雪峰山 [Xuefengshan] 935   Zhonghua SY, Shanghai   7.1995 12.1995 in service (2019) 海洋山 [Haiyangshan] 936   Zhonghua SY, Shanghai   12.1995 5.1996 in service (2019) 青城山 [Qingchengshan] 937   Zhonghua SY, Shanghai   4.1996 8.1996 in service (2019) 雁荡山 [Yandangshan] 908   Zhonghua SY, Shanghai   8.1996 1.1997 in service (2019) 九华山 [Jiuhuashan] 909   Zhonghua SY, Shanghai   11.1999 4.2000 in service (2019) 黄岗山 [Huanggangshan] 910   Zhonghua SY, Shanghai   5.2000 12.2001 in service (2019) 普陀山 [Putuoshan] 939   Zhonghua SY, Shanghai   4.2001 8.2001 in service (2019) 天台山 [Tiantaishan] 940   Zhonghua SY, Shanghai   12.2001 4.2002 in service (2019)

Technical data


Displacement standard, t3430
Displacement normal, t

4800

Length, m

119.5

Breadth, m

16.4

Draught, m2.80
No of shafts

2

Machinery

2 SEMT-Pielstick 12PA6V-280MPC diesels

Power, h. p.

9600

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)3000(14)
Armament

3 x 2 - 37/63 type 76, 2 x 40 - 122 type 81H rocket launchers, helicopter deck

Military load

2 LCVP, 10 main battle tanks or 500 t of cargo, 250 troops

Electronic equipment2x type 756, JPT-4G radars
Complement

104



Standard scale images

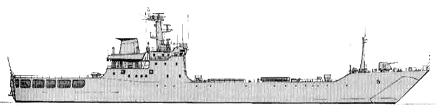

<i>Haiyangshan </i>2010
Haiyangshan 2010


Graphics

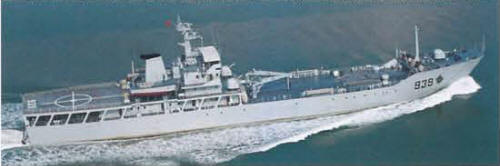

<i>Putuoshan </i>2007
Putuoshan 2007


Project history

Type 072II with enhanced helicopter deck. Stern ramp, two cranes installed fwd of superstructure. 2 type 724 LCAC can be taken via stern ramp.

Modernizations

None.

Naval service

No significant events.
