NANYUN 830 troop transports (1980-1982)

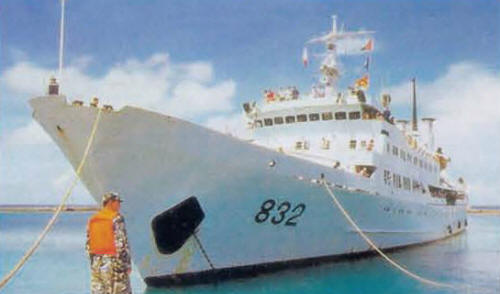

Nanyun 832 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 南运 830 [Nanyun 830], 2012- 海监... [Haijian...] | 830 | Guangzhou SY | 1980 | Marine Surveillance patrol ship 2012, in service (2019) | |||
| 南运 831 [Nanyun 831] | 831 | Guangzhou SY | 1980s | hospital vessel 2016 | |||
| 南运 836 [Nanyun 836] | 836 | Guangzhou SY | 1980s | hospital vessel 2016 |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 2150 |
| Length, m | 86.0 |
| Breadth, m | 13.4 |
| Draught, m | 3.90 |
| No of shafts | 3 |
| Machinery | 3 SKL 8NVD48A-2U diesels |
| Power, h. p. | 3960 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(11) |
| Armament | 4 x 2 - 14.5/93 |
| Military load | 4 lifeboats used as landing craft, 400 troops, 350 t of cargo |
| Electronic equipment | 2x type 753 radars |
| Complement | 59 |
Standard scale images
Nanyun 830 2010
Graphics
Nanyun 832 2008
Project history
Troop transports for South Sea Fleet, other sisterships served as cargo carriers and hospital ships.
Modernizations
None.
Naval service
No significant events.
