No3128 medium landing ships (project 074A, 2004-2005)

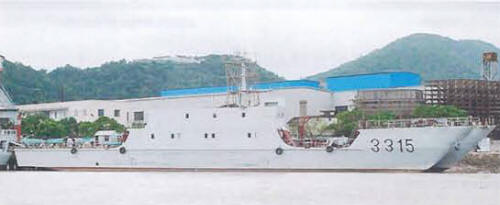

No3315 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 3128 | Qingdao NYd | 9.2003 | 2004 | in service (2019) | |||
| 3129 | Qingdao NYd | 2003 | 2004 | in service (2019) | |||
| 3232 | Shanghai SY International | 9.2003 | 2005 | in service (2019) | |||
| 3233 | Qingdao NYd | 2004 | 2004 | in service (2019) | |||
| 3234 | Qingdao NYd | 2004 | 2004 | in service (2019) | |||
| 3235 | Qingdao NYd | 2004 | 2005 | in service (2019) | |||
| 3302 | Dinghai NYd | 2004 | 2005 | in service (2019) | |||
| 3315 | Zhanjiang SY International | 2003 | 2004 | in service (2019) | |||
| 3316 | Dinghai NYd | 9.2003 | 2004 | in service (2019) | |||
| 3317 | Dinghai NYd | 11.2003 | 2004 | in service (2019) | |||
| 3318 | Dinghai NYd | 1.2004 | 2004 | in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 900 |
|---|---|
| Displacement normal, t | 1200 |
| Length, m | 62.0 pp 64.0 oa |
| Breadth, m | 11.0 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 TBD2 34V6 diesels |
| Power, h. p. | |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(14) |
| Armament | 2 x 2 - 14.5/93 |
| Military load | 6 main battle tanks or 250 t of cargo, 70 troops |
| Electronic equipment | type 756 radar |
| Complement | 27 |
Standard scale images
No3128 2010
Graphics
No3315 2003
Project history
Landing ships with unusual architecture, catamaran hull with superstructure on starboard side. Existing of No3302 is presumable.
Modernizations
None.
Naval service
No significant events.
