LIANYUNGANG frigates (project 053H3, 1998-2005)





Lianyungang 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
嘉兴 [Jiaxing] 521   Hudong SY, Shanghai 11.1996 5.6.1997 11.1998 to Bangladesh 12.2019 (আবু উবায়দাঃ [Abu Ubaidah])
连云港 [Lianyungang] 522   Hudong SY, Shanghai 1.1997 8.8.1997 6.1999 to Bangladesh 12.2019 (উমার ফারুক [Umar Farooq])
蒲田 [Putian] 523   Hudong SY, Shanghai 6.1997 10.8.1998 12.1999 in service (2019)
三明 [Sanming] 524   Hudong SY, Shanghai 11.1997 23.12.1998 15.12.1999 in service (2019)
洛阳 [Luoyang] 527   Hudong SY, Shanghai 2003 30.9.2004 1.2005 in service (2019)
绵阳 [Mianyang] 528   Huangpu SY, Guangzhou 2003 30.5.2004 10.2004 in service (2019)
宜昌 [Yichang] 564   Huangpu SY, Guangzhou 12.1997 10.1998 1.2000 in service (2019)
玉林 [Yulin], 2008- 三亚 [Sanya], 4.2013- 葫芦岛 [Huludao] 565   Huangpu SY, Guangzhou 5.1998 4.1999 31.7.2000 in service (2019)
怀化 [Huaihua] 566   Huangpu SY, Guangzhou 5.2000 3.10.2000 7.2002 in service (2019)
襄樊 [Xiangfan], 6.2011- 襄阳 [Xiangyang] 567   Huangpu SY, Guangzhou 3.2001 8.2001 5.2002 in service (2019)


Technical data


Displacement standard, t

1913

Displacement full, t

2393

Length, m

108.0 wl 114.5 oa

Breadth, m

12.2 wl 12.4 oa

Draught, m

3.60 hull

No of shafts

2

Machinery

CODAD: 2 SEMT-Pielstick 18E390VA diesels + 2 MTU diesels

Power, h. p.

14000 + 8840 = 22840

Max speed, kts

26

Fuel, t

diesel oil

Endurance, nm(kts)

4000(18)

Armament

2 x 4 Ying Ji-82 SSM (8 C-802), 1 x 8 HQ-7 SAM (16 HQ-7), 1 x 2 - 100/56 type 99, 4 x 2 - 37/63 type 76A, 2 x 6 type 87 ASWRL, 1 helicopter (Z-9A/C)

Electronic equipment

521-524, 564-567: 2x Decca RM 1290A/D, type 360, type 517, type 341, type 343, 2x type 347G, type 345 radars, GDG-775 E/O sensor, SJD-7 (EN-5) sonar, NRJ-5 ECM suite (SR-210, type 981-3, RWD-8 units), 2x SRBOC Mk 36 decoy RL, 2x PJ-46 decoy RL, ZKJ-4B/6 CCS

527, 528: 2x Decca RM 1290A/D, type 360, type 517, type 341, type 344, 2x type 347G, type 345 radars, GDG-775 E/O sensor, SJD-7 (EN-5) sonar, NRJ-5 ECM suite (SR-210, type 981-3, RWD-8 units), 2x SRBOC Mk 36 decoy RL, 2x PJ-46 decoy RL, ZKJ-4B/6 CCS

Complement

168



Graphics

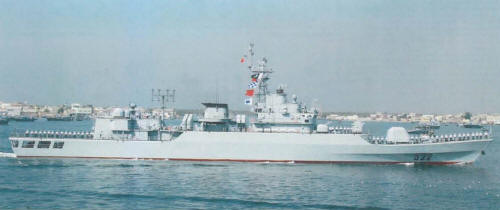

<i>Lianyungang </i>2007
Lianyungang 2007


Project history

Type 053H2G with more effective SAM system, HQ-7 (based on French Navale Crotale) instead of HQ-61, and new SSMs.

Modernizations

None.

Naval service

Putian was damaged in collision with merchant vessel 18.3.2006.
