ZHANJIANG destroyer (1989), ZHUHAI destroyer (1991)





Zhuhai 1994

Ships


Name No Yard No Builder Laid down Launched Comp Fate
湛江 [Zhanjiang] 165   Dalian SY 1986 1.8.1988 30.12.1989 in service (2019)
珠海 [Zhuhai] 166   Dalian SY 1988 18.10.1990 21.11.1991 in service (2019)


Technical data


Displacement standard, t

3670

Displacement full, t

3960

Length, m

165: 127.5 pp 132.0 oa

166: 128.6 oa

Breadth, m

12.8

Draught, m

165: 4.39 hull 5.30 sonar

166: 4.66 hull

No of shafts

2

Machinery

2 sets geared steam turbines, 4 boilers

Power, h. p.

72000

Max speed, kts

35

Fuel, t

oil

Endurance, nm(kts)

2970(18)

Armament

165: 2 x 3 Hai Ying-1J SSM (6 HY-1J), 2 x 2 - 130/58 type 76, 4 x 2 - 37/63 type 76A, 2 x 2 - 25/80 type 61, 2 x 12 FQF-2500 (type 75) ASWRL, 4 DCT, 38 mines or 2 DCR

166: 4 x 2 Ying Ji-8 SSM (8 YJ-8 (C-801)), 2 x 2 - 130/58 type 76, 4 x 2 - 37/63 type 76A, 2 x 2 - 25/80 type 61, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 2 DCT, 38 mines or 2 DCR

Electronic equipment

165: type 354, type 381, type 515, type 352-III, type 343, type 347, type 756 radars, SJD-2, SJD-4 sonars, type 825, RW-23-1 ECM suites, ZKJ-4 CCS

166: type 354, type 381, type 517, type 344, EFR-1, type 756 radars, SJD-7 sonar suite, type 825, RW-23-1 ECM suites, ZKJ-3 CCS

Complement

165: 302

166: 280



Standard scale images

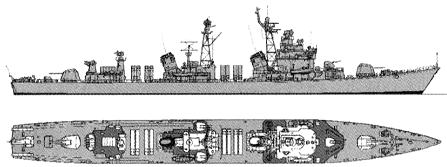

<i>Zhanjiang </i>1990
Zhanjiang 1990

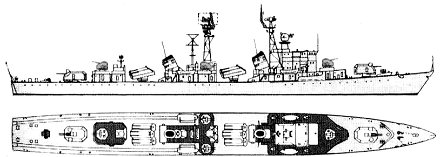

<i>Zhuhai </i>2000
Zhuhai 2000

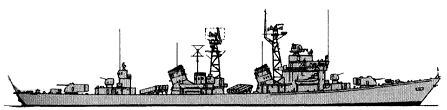

<i>Zhajiang </i>2010
Zhajiang 2010


Graphics

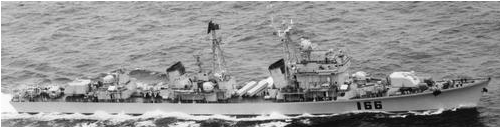

<i>Zhuhai </i>1994
Zhuhai 1994


Project history

Types 051G1 (Zhanjiang) and 051G2 (Zhuhai). Really type 051 with new electronics, mainly new type 381 radar, new sonar, new ECM and combat control systems.

Modernizations

2003, Zhanjiang: have armament and sensors consisted of: 4 x 4 Ying Ji-1 SSM (16 C-801), 1 x 8 HQ-7 SAM (16 HQ-7), 2 x 2 - 100/56 type 99, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 38 mines; type 756, type 362, type 381, type 517, type 344, type 345, 2x type 347G radars, SJD-7 sonar suite, type 825 (DR-2000S + Alligator), RW-23-1 ECM suites, 2 decoy RL, ZKJ-4 CCS

2003, Zhuhai: have armament and sensors consisted of: 4 x 4 Ying Ji-83 SSM (16 C-803), 1 x 8 HQ-7 SAM (16 HQ-7), 2 x 2 - 100/56 type 99, 4 x 2 - 37/63 type 76A, 2 x 3 - 324 TT, 2 x 12 FQF-2500 (type 75) ASWRL, 38 mines; type 756, type 362, type 381, type 517, type 344, type 345, 2x type 347G radars, SJD-7 sonar suite, type 825 (DR-2000S + Alligator), RW-23-1 ECM suites, 2 decoy RL, ZKJ-3 CCS

Naval service

No significant events.
