AN SHAN destroyers (1941-1942/1955)

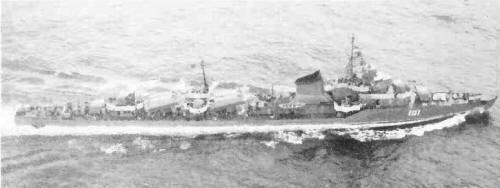

An Shan 1986

Ships


Name No Yard No Builder Laid down Launched Comp Fate
鞍山 [An Shan] (ex-Рекордный [Rekordnyy], ex-Прыткий [Prytkiy]) 101   198 Marti Yd, Nikolayev // 202 Yd, Vladivostok, USSR 9.1936 // 8.1938 6.4.1939 1.1941 // 4.10.1954 preserved 4.1992
撫順 [Fu Shun] (ex-Резкий [Rezkiy]) 102   198 Marti Yd, Nikolayev // 202 Yd, Vladivostok, USSR 5.1936 // 7.1938 29.4.1940 8.1942 // 4.10.1954 stricken 1989
長春 [Chang Chun] (ex-Решительный [Reshitelnyy], ex-Поспешный [Pospeshnyy]) 103   198 Marti Yd, Nikolayev // 199 Yd, Komsomolsk-on-Amur, USSR 8.1936 // 8.1939 30.4.1940 8.1941 // 28.6.1955 preserved 1990
太原 [Tai Yuan] (ex-Ретивый [Retivyy]) 104   198 Marti Yd, Nikolayev // 199 Yd, Komsomolsk-on-Amur, USSR 8.1936 // 7.1937 27.10.1937 10.1941 // 28.6.1955 hulk 9.1991


Technical data


Displacement standard, t

1900

Displacement full, t

2200

Length, m

112.8

Breadth, m

10.2

Draught, m

3.27 mean 4.10 max

No of shafts

2

Machinery

2 GTZA-24 geared steam turbines sets, 3 triangle-shaped boilers

Power, h. p.

48000

Max speed, kts

35

Fuel, t

oil 535

Endurance, nm(kts)2720(20)
Armament

4 x 1 - 130/51 B-13, 4 x 2 - 37/70 V-11, 2 x 3 - 533 TT, 2 DCT, 2 DCR (67), 60 mines

Electronic equipmentGiuys-1, Rif-1, Vympel-2 radars, Tamir-5N sonar
Complement

246



Standard scale images


<i>Chang Chun</i> 1963
Chang Chun 1963
<i>Chang Chun </i>1980
Chang Chun 1980


Graphics


<i>An Shan </i>1986
An Shan 1986


Project history

Former Soviet Project 7 destroyers.

Modernizations

1971-1974, all: - 2 x 3 - 533 TT, Giuys-1, Rif-1, Vympel-2 radars, Tamir-5N sonar; + 2 x 2 HY-2 SSM (4 HY-2), type 352, type 517, Rangout, Decca 707 radars, Pegas-2M sonar

Naval service

No significant events.
