11! YU ZHENG 310 patrol ship (2010)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 渔政 310 [Yu Zheng 310], 2013- 海警 3210 [Haijing 3210], 2013- 三沙市警察局 1 [Snshashijingchaju 1] | 310, 2013- 3210, 2013- 1 | China | 3.2010 | 16.11.2010 | Coast Guard 2013, in service (2019) |
Technical data
| Displacement standard, t | 2580 |
|---|---|
| Displacement full, t | |
| Length, m | 108.3 |
| Breadth, m | 14.0 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 6000 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(18) |
| Armament | 2 x 2 - 14.5/93, 1 helicopter (Z-9) |
| Electronic equipment | 2 navigation radars |
| Complement | 56 |

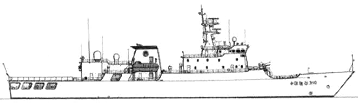

Standard scale images
Haijing 3210 2015
Project history
Patrol ship for Fisheries Law Enforcement Command, transferred to Coast Guard in 2013 and to Sansha City police in 2013.
Modernizations
None.
Naval service
No significant events.
© Ivan Gogin, 2017-19
