PL60 patrol craft (2002-2005)
PL64 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| PL60 | 60 | Cheoy Lee, Hong Kong | 2002 | in service (2019) | |||
| PL61 | 61 | Cheoy Lee, Hong Kong | 2002 | in service (2019) | |||
| PL62 | 62 | Cheoy Lee, Hong Kong | 2004 | in service (2019) | |||
| PL63 | 63 | Cheoy Lee, Hong Kong | 2004 | in service (2019) | |||
| PL64 | 64 | Cheoy Lee, Hong Kong | 2005 | in service (2019) | |||
| PL65 | 65 | Cheoy Lee, Hong Kong | 2005 | in service (2019) |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement full, t | 120 |
| Length, m | 30.1 |
| Breadth, m | 6.30 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V200TE90 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 360(15) |
| Armament | none |
| Electronic equipment | SM5000 radar |
| Complement | 13 |
Graphics

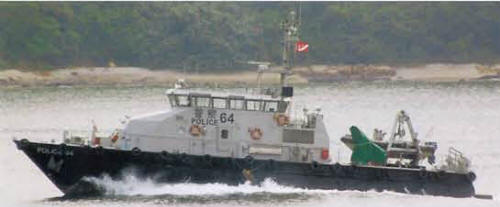

PL64 2007
Project history
Hong Kong police craft.
Modernizations
None.
Naval service
No significant events.
