PL46 patrol boats (1992/1997)
PL47 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL46-49 |
Seaspray Boats, Fremantle, Australia: PL46-49 | 1992 // 1997: PL46-49 |
none |
none |
in service (2019): PL46-49 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 11 |
| Length, m | 11.4 |
| Breadth, m | 4.20 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 550 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

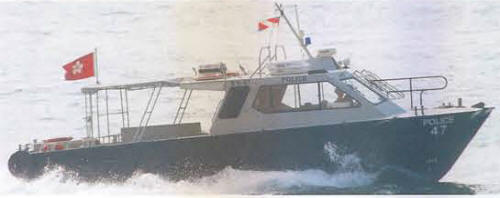

PL47 2007
Project history
Hong Kong police boats. Catamaran hull.
Modernizations
None.
Naval service
No significant events.
