PL40 patrol boats (2000)
PL42 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL40-45 |
Cheoy Lee, Hong Kong: PL40-45 | 2000: PL40-45 |
none |
none |
in service (2019): PL40-45 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 13.1 |
| Breadth, m | 3.96 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN D2842LE403 diesels |
| Power, h. p. | 720 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

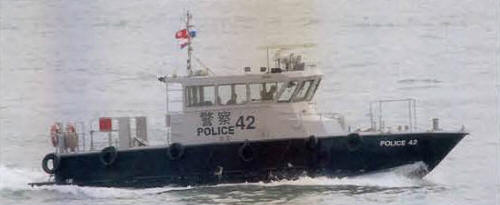

PL42 2007
Project history
Hong Kong police boats.
Modernizations
None.
Naval service
No significant events.
