PL11 patrol boats (1986-1987/1997)
PL17 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL11 (ex-Petrel) PL12 (ex-Auk) PL13 (ex-Gull) PL14 (ex-Tern) PL15 (ex-Skua) PL16 (ex-Puffin) PL17 (ex-Gannet) |
Chung Wah SB, Kowloon: PL11-17 | 1986-1987 // 1997: PL11-17 |
none |
none |
2008: PL11-17 |
Technical data
| Displacement standard, t | 36 |
|---|---|
| Displacement full, t | |
| Length, m | 16.0 |
| Breadth, m | 4.60 |
| Draught, m | 1.50 |
| No of shafts | 2 waterjets |
| Machinery | 2 Cummins NTA855M diesels |
| Power, h. p. | 700 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | Decca radar |
| Complement | 7 |
Graphics

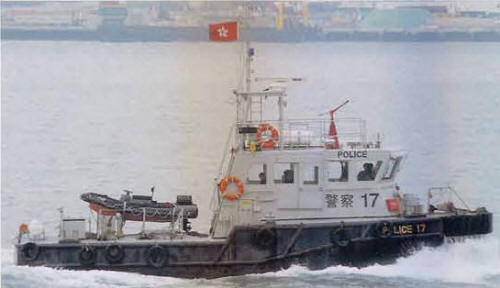

PL17 2007
Project history
Hong Kong police boats.
Modernizations
None.
Naval service
No significant events.
