14! HAIJING 2901 patrol ships (2015-2016)

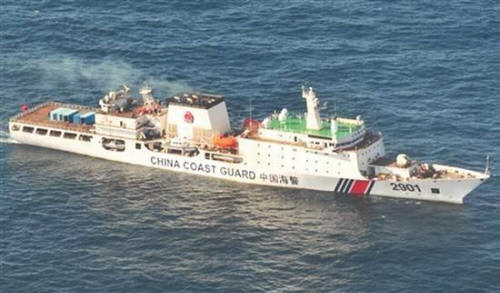

Haijing 2901 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 海警 2901 [Haijing 2901] | 2901 | Jiangnan, Shanghai | 2015 | in service (2019) | |||
| 海警 3901 [Haijing 3901] | 3901 | Jiangnan, Shanghai | 2.1.2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 12000 |
| Length, m | 165.0 |
| Breadth, m | 21.8 |
| Draught, m | |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 76/59 PJ-26, 2 x 1 - 30/77 PJ-14, 1 helicopter |
| Electronic equipment | 1 surface search, 2 navigation radars |
| Complement |

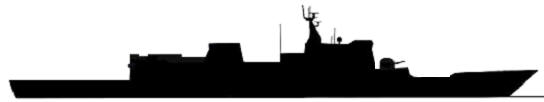

Standard scale images
Haijing 2901 2015
Graphics
Haijing 2901 2016
Project history
Largest Coast Guard patrol ships in the world.
Modernizations
None.
Naval service
No significant events.
