HAIJING 1501 patrol ships (2015-2016)
Haijing 2501 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 海警 1501 [Haijing 1501] | 1501 | Wuchang, Wuhan | 16.1.2015 | 16.9.2015 | in service (2019) | ||
| 海警 2501 [Haijing 2501] | 2501 | Wuchang, Wuhan | 10.9.2014 | 16.1.2015 | in service (2019) | ||
| 海警 2502 [Haijing 2502] | 2502 | Wuchang, Wuhan | 6.2015 | 8.1.2016 | in service (2019) | ||
| 海警 3501 [Haijing 3501] | 3501 | Wuchang, Wuhan | 1.1.2015 | 21.8.2015 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 5000 |
| Length, m | 128.6 |
| Breadth, m | 16.9 |
| Draught, m | 7.90 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 30/77 PJ-14, 1 helicopter (Z-9), 1 fast boat |
| Electronic equipment | surface search, 2x navigation radars |
| Complement |

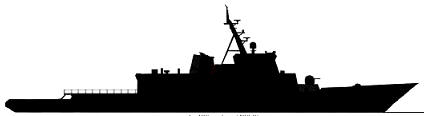

Standard scale images
Haijing 2501 2015
Graphics

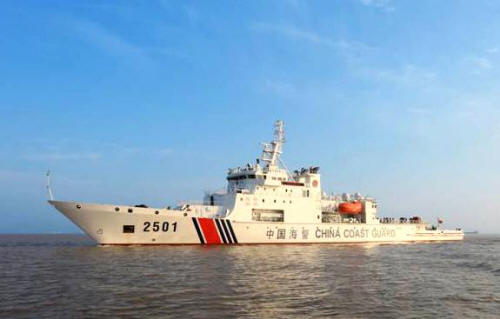

Haijing 2501 2016
Project history
Coast Guard patrol ships. Fast boat is launched via stern ramp.
Modernizations
None.
Naval service
No significant events.
